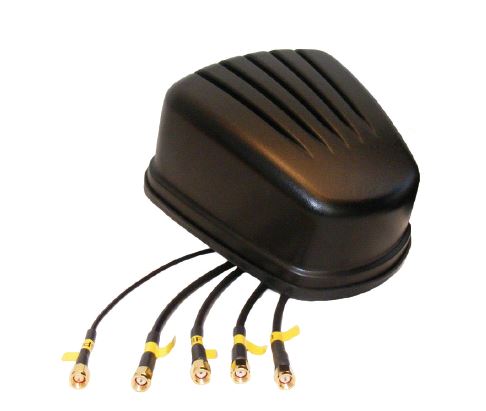

GPSMB501 Panther LTE, MIMO WLAN + GPS/GLONASS &17 ft. Cables & SMA

  • $133.00
    Unit price per

GPSMB501


30 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $123.63
25 $120.25
Lead time for qty above 30:  Ships in 4-6 Weeks

GPSMB501 Panther LTE, MIMO WLAN + GPS/GLONASS &17 ft. Cables & SMA

More InfoDocumentsSpecifications Reviews

GPSMB501 Panther LTE, MIMO WLAN + GPS/GLONASS &17 ft. Cables & SMA


More Information

GPSMB501 Panther LTE, MIMO WLAN + GPS/GLONASS &17 ft. Cables & SMA

Documents


Specifications

SKU GPSMB501
Manufacturer Part Number GPSMB501
Manufacturer Pulse
Frequency 698-960 / 1695-2170 MHz
Gain 4 dBi (+/- 2.5)
Frequency 2 2300-2700 / 2900-3600 MHz
Gain 2 5 dBi (+/- 2)
Frequency 3 2400-2500 MHz
Gain 3 4.5 dBi (+/- 1.5)
Frequency 4 4900-5900 MHz
Gain 4 5 dBi (+/- 2)
Frequency 5 1565-1610 MHz (GPS/Glonass)
Gain 5 31 dBi
Antenna Style Vehicular 5-in-1
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Polarity Vertical
Bands Multi
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 20 Watts
VSWR: < X: 1 1.4 - 1.6
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 6.5 in. long
Height/Length (mm) 165 mm long
Width (inches) 6 in. wide
Width (mm) 152 mm wide
Thickness/Diameter (inches) 3 in. thick
Thickness/Diameter (mm) 76 mm thick
Weight (lbs) 2.75 lbs
Weight (grams) 1250 grams
Material ABS Plastic / Polycarbonate
Operating Temp (celsius) MIL-STD 810G -40 +85 C

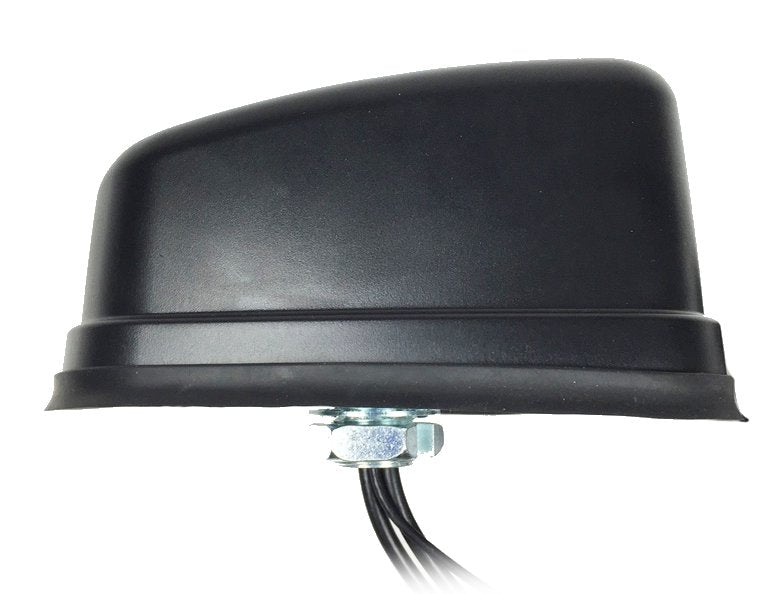

Mount Style Through hole / direct roof mount -7/8"
Color Black
Connector Type Cable - Bottom Entry
Number of Cables 5
Cable Length (inches) 17 feet / 204 inches
Cable Length (mm) 5.18 meters / 5182 mm
Connector 1 SMA-Male
Connector 2 SMA-Male
Connector 3 SMA Male

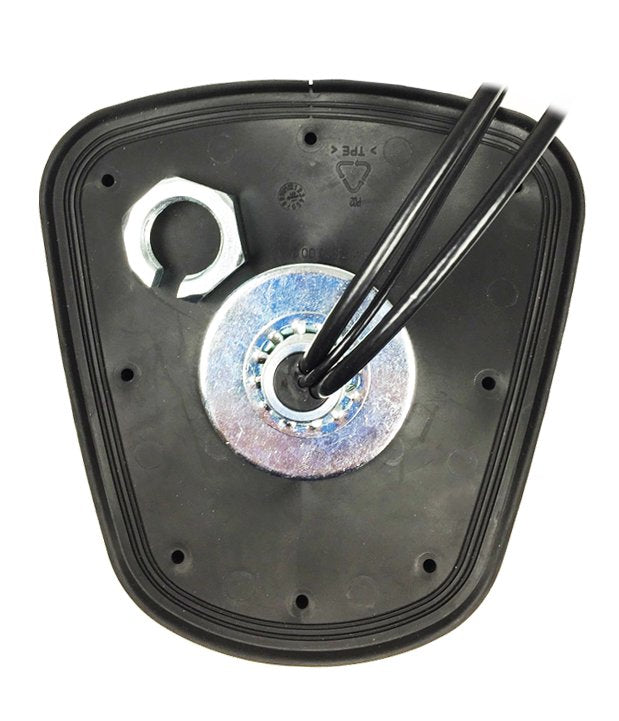

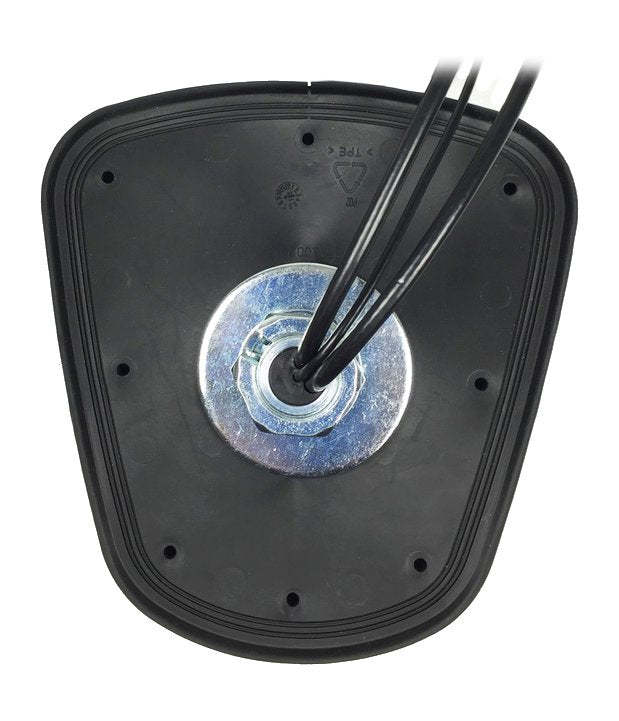

Includes Rubber Gasket, Lock Washer & Split Hex Nut
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Accessory 1 Use With Magnetic Mounting Kit, part # GPSMBMM
Product Condition New
