GPSMB301: (1)GPS/Glonass + (2)3G /4G/LTE with 17 Ft. Cables & SMA Connectors
GPSMB301
Shipping calculated at checkout.
GPSMB301: (1)GPS/Glonass + (2)3G /4G/LTE with 17 Ft. Cables & SMA Connectors
More InfoDocumentsSpecifications ReviewsPULSE-LARSEN PANTHER SERIES 3-IN-1 ANTENNA. GPS/GLONASS + (2) 3G/4G ELEMENTS. 17 FT. CABLES & SMA MALE CONNECTORS.
More Information

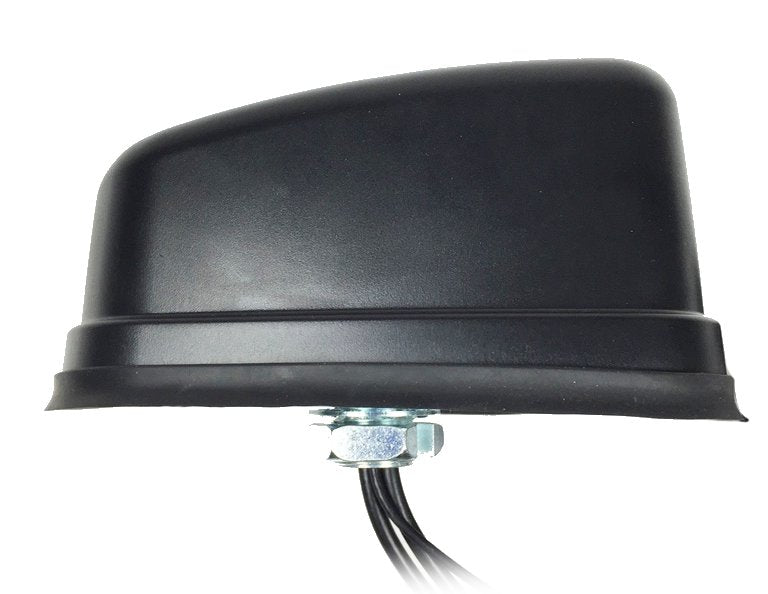

PULSE-LARSEN PANTHER SERIES 3-IN-1 ANTENNA: (1) GPS/GLONASS + (2) 3G/4G ELEMENTS. (3) 17 FT. CABLES & SMA MALE CONNECTORS. MOUNTS USING A STAINLESS STEEL THREADED STUD THROUGH VEHICLE ROOF, OR USING MAGNETIC MOUNT
Documents
We Also Recommend
RDA-4G/5G-1-SSM
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
$21.67
$21.67
View Details
R2G5A-10SSM
GPS & 5G/4G 2-in-1 Antenna for Dashboard/Windshield 10 ft Cables & SMA. Dual-Pass RF. Adhesive Mount. R2G5A-10SSM
$88.00
$88.00
View Details
RBDM-G55WW-17-SSSRR-B
4G/5G, 5-in-1 Antenna for Mobile Cellular Routers with 17 ft. Cables (Band 71, CBRS, WiFi6) RBDM-G55WW-17-SSSRR-B
$305.55
$305.55
View Details
RBDM-G55WW-17-SSSRR-W
4G/5G, 5-in-1 Antenna for Mobile Cellular Routers with 17 ft. Cables (Band 71, CBRS, WiFi6), White RBDM-G55WW-17-SSSRR-W
$320.10
$320.10
View Details
Specifications
| SKU | GPSMB301 |
|---|---|
| Manufacturer Part Number | GPSMB301 |
| Manufacturer | Pulse |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 698-960 / 1695-2170 MHz |
| Gain | 4 dBi (+/- 2.5) |
| Working Frequency 2 | 2300-2700 / 2900-3600 MHz |
| Gain 2 | 5 dBi (+/- 2) |
| Working Frequency 3 | 1565-1610 MHz (GPS/Glonass) |
| Gain 3 | 31 dBi |
| Antenna Style | Multi Element/Band Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 20 Watts |
| VSWR: < X: 1 | 1.4 - 1.6 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 6.5 in. long |
| Height/Length (mm) | 165 mm long |
| Width (inches) | 6 in. wide |
| Width (mm) | 152 mm wide |
| Thickness/Diameter (inches) | 3 in. thick |
| Thickness/Diameter (mm) | 76 mm thick |
| Weight (lbs) | 2.75 lbs |
| Weight (grams) | 1250 grams |
| Material | ABS Plastic / Polycarbonate |
| Operating Temp (celsius) | MIL-STD 810G -40 +85 C |
| Mount Style | Through hole / direct roof mount -7/8" |
| Color | Black |
| Connector Type | Cable - Bottom Entry |
| Number of Cables | 5 |
| Cable Length (inches) | 17 feet / 204 inches |
| Cable Length (mm) | 5.18 meters / 5182 mm |
| Connector 1 | SMA-Male |
| Connector 2 | SMA-Male |
| Connector 3 | SMA Male |

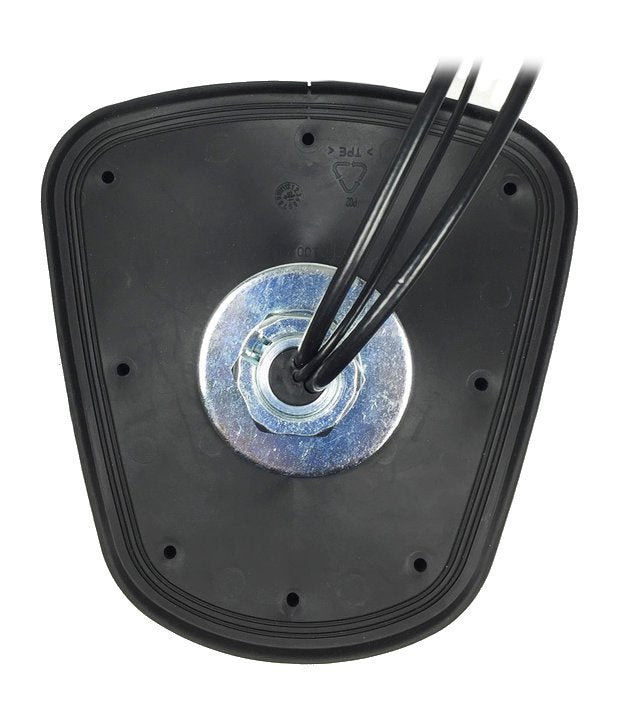

| Includes | Rubber Gasket, Lock Washer & Split Hex Nut |
| IP Rating | IP67 |
| Vehicular | Yes |
| Accessory 1 | Use With Magnetic Mounting Kit, part # GPSMBMM |
| Product Condition | New |
