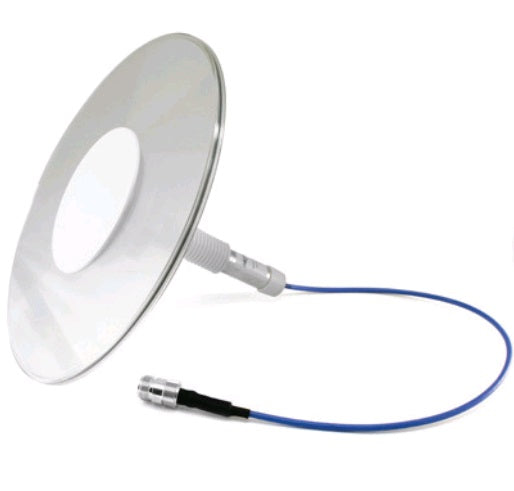

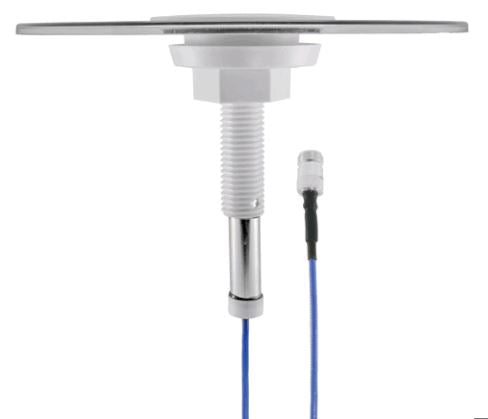

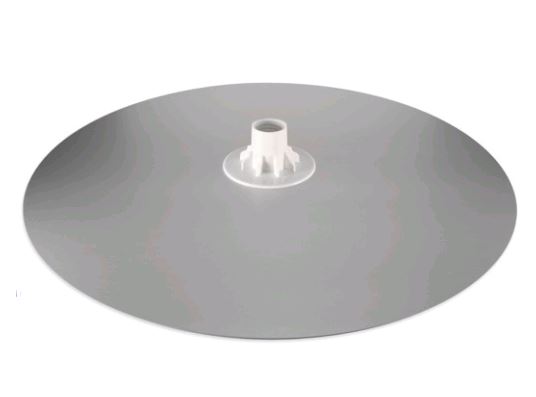

DASUTCCR500NF Clarity Series Ceiling Mount for 2g, 3g, 4g(lte) and Wifi Band with N-Female Connector (Reflector Included)
DASUTCCR500NF
Shipping calculated at checkout.
DASUTCCR500NF Clarity Series Ceiling Mount for 2g, 3g, 4g(lte) and Wifi Band with N-Female Connector (Reflector Included)
More InfoSpecifications ReviewsClarity series translucent ultra thin ceiling mount for 2g, 3g, 4g(lte) and wifi band with N-Female connector (reflector included)
-Ceiling Mount indoor omni antenna for T-Mobile 600 MHz 4G/LTE band (610-698 MHz)
More Information
Clarity series translucent ultra thin ceiling mount for 2g, 3g, 4g(lte) and wifi band with N-Female connector (reflector included)
Specifications
| SKU | DASUTCCR500NF |
|---|---|
| Manufacturer Part Number | DASUTCCR500NF |
| Manufacturer | Pulse |
| Antenna Category | iDAS |
| Working Frequency | 608-960 MHz |
| Gain | 7dBi |
| Working Frequency 2 | 1695-2200 MHz |
| Gain 2 | 7dBi |
| Working Frequency 3 | 2300-2700 MHz |
| Gain 3 | 5dBi |
| Antenna Style | iDAS Antennas |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| Max Input Power (W) | 40 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Vertical/Elevation Beamwidth | 100 |
| Pim Rating (@ 2x20 W) | -155 |
| Height/Length (inches) | 6.78 |
| Height/Length (mm) | 172.2 |
| Width (inches) | 9.41 |
| Width (mm) | 239 |
| Weight (lbs) | 1.65 |
| Weight (grams) | 750 |
| Cable Length (inches) | 19.7 |
| Cable Length (mm) | 500 |
| Connector 1 | N-Female |
| Product Condition | New |
