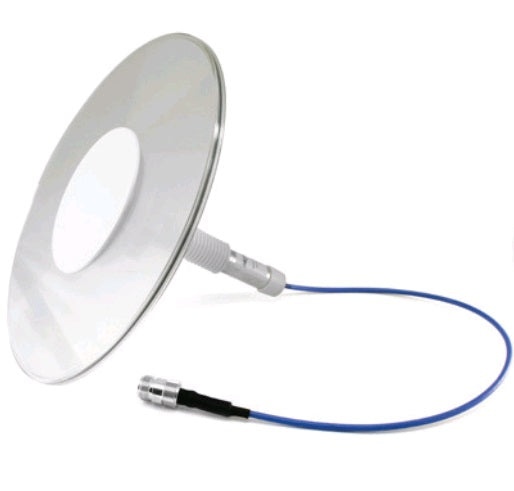

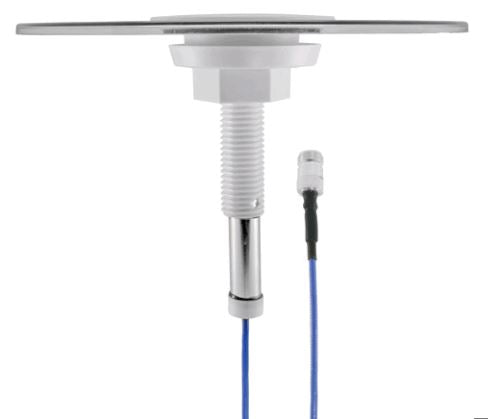

DASUTCC5004310 Clarity Series Ceiling Mount for 2g, 3g, 4g(lte) and Wifi Band with DIN Female Connector
DASUTCC5004310
Shipping calculated at checkout.
DASUTCC5004310 Clarity Series Ceiling Mount for 2g, 3g, 4g(lte) and Wifi Band with DIN Female Connector
More InfoDocumentsSpecifications ReviewsClarity series translucent ultra thin ceiling mount for 2g, 3g, 4g(lte) and wifi band with 4.3-10 DIN female connector
-Ceiling Mount indoor omni antenna for T-Mobile 600 MHz 4G/LTE band (610-698 MHz)
More Information
Clarity series translucent ultra thin ceiling mount for 2g, 3g, 4g(lte) and wifi band with 4.3-10 DIN female connector
Documents
Specifications
| SKU | DASUTCC5004310 |
|---|---|
| Manufacturer Part Number | DASUTCC5004310 |
| Manufacturer | Pulse |
| Antenna Category | iDAS |
| Working Frequency | 608-960 MHz |
| Gain | 4 |
| Working Frequency 2 | 1695-2200 MHz |
| Gain 2 | 6 |
| Working Frequency 3 | 2300-2700 MHz |
| Gain 3 | 6 |
| Antenna Style | Ceiling Mount |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| Max Input Power (W) | 40 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Vertical/Elevation Beamwidth | 100 |
| Pim Rating (@ 2x20 W) | -155 |
| Height/Length (inches) | 6.78 |
| Height/Length (mm) | 172.2 |
| Width (inches) | 9.41 |
| Width (mm) | 239 |
| Weight (lbs) | 1.2 |
| Weight (grams) | 750 |
| Cable Length (inches) | 19.5 |
| Cable Length (mm) | 500 |
| Connector 1 | 4.3-10 DIN Female |
| Product Condition | New |
