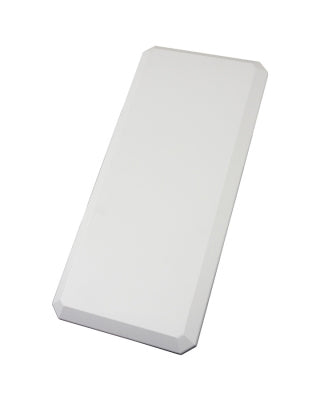

PRL90209-FNF 10x20 inch Dual Element / Bi-Static Circularly Polarized RFID Antenna.

  • $249.00
    Unit price per


0 in stock. Subject to factory lead time
Factory lead time:  Ships in 8-10 Weeks

PRL90209-FNF 10x20 inch Dual Element / Bi-Static Circularly Polarized RFID Antenna.

More InfoDocumentsSpecifications Reviews

The PRL90209-FNF is a 10x20 inch, IP67 rated dual port Circularly Polarized RFID Antenna offering 9 dBic in the FCC range: 902-928 Mhz. The unit has two fixed N-female connectors and can be operated as two monostatic or one bistatic antenna. Equivalent to Motorola Zebra AN440

More Information

The PRL90209 is a circularly polarized panel antenna that provides reception and transmission of signals in the 902-928 MHz frequency band. Both VSWR and axial ratios are excellent and provide maximum performance for an antenna of this type. The PRL90209 is housed in a heavy duty radome enclosure that can be directly wall mounted. The antenna is offered with an integrated fixed connector with a variety of connector types.


• Low profile design
• Extremely low VSWR and axial ratio
• Weather and UV resistant radome
• IP67 Rated Enclosure

(Equivalent to Zebra AN440)



Manufacturer Part Number PRL90209-FNF
Manufacturer Laird
Product Condition New
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating 67
Polarity Circular
Gain 9
Horizontal/Azimuth Beamwidth 70
Vertical/Elevation Beamwidth 70
Connector Type Connector - Rear
Connector 1 N-Female
Connector 2 N-Female
Height/Length (inches) 22.5
Height/Length (mm) 575
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 33.5
Width (inches) 10.3
Width (mm) 259
Weight (lbs) 4.2
Weight (grams) 1900
Material ABS Housing
Color White
Mount Style Threaded Studs 1/4-20
Includes 4 each: flast washers, lock washers & hex nuts
