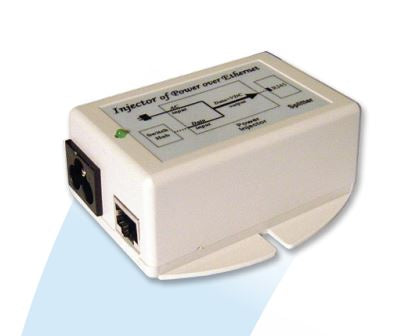

POE-48i: POE Power Supply/Inserter Input 90-264VAC. Output 48VDC at 0.35A 16.8W. Lightning/Surge protection on Ethernet pairs

  • $38.24
    Unit price per

POE-48i


25 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $35.45
25 $32.50
100 $30.47
250 $28.68
500 $26.71
Factory lead time:  Ships in 6-8 Weeks

POE-48i: POE Power Supply/Inserter Input 90-264VAC. Output 48VDC at 0.35A  16.8W. Lightning/Surge protection on Ethernet pairs

POE-48i: POE Power Supply/Inserter Input 90-264VAC. Output 48VDC at 0.35A 16.8W. Lightning/Surge protection on Ethernet pairs

More InfoDocumentsSpecifications Reviews

Power Supply / Inserter The POE-xxi is an advanced power supply / power inserter. The power supply is autoranging on the input and has a regulated voltage output. It has overload and short circuit protection in addition to Ethernet surge suppression built-in. The POE-xxi is not a proprietary unit. It will function with any equipment that is compliant with the IEEE 802.3af POE standards.



More Information

The POE-xxi is an advanced power supply / power inserter. The power supply is autoranging on the input and has a regulated voltage output. It has overload and short circuit protection in addition to Ethernet surge suppression built-in. The POE-xxi is not a proprietary unit. It will function with any equipment that is compliant with the IEEE 802.3af POE standards. For all “i” models, the power is supplied on ethernet pins 4/5 (V+) and 7/8 (V-). For the “iR” models, the power is supplied on Ethernet pins 4/5 (V-) and 7/8 (V+). The POE-xxi comes complete with a standard North American 115 VAC power cord. International cords are available upon request. A Current Indicator (-CI) model is available. The LED will be AMBER until >35 mA current flows to the end device which will turn the LED to GREEN. This is a good way to remotely monitor the connection between the Power-Over-Ethernet (POE) and the end device, and to indicate that the end device is turned on. To order this model, add a “–CI” suffix to the standard part number.


Documents


Specifications

SKU POE48i
Manufacturer Part Number POE-48i
Manufacturer Laird
Product Condition New
