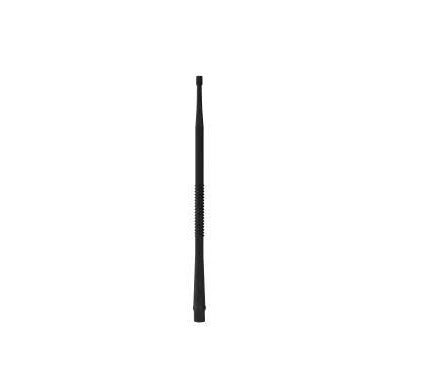

PCTP450: PCTEL / Maxrad Black Heavy Duty Flexible Antenna - Elevated Feed Point - UHF 450-470 MHz - TNC Male - IP67 - 2 dBi

  • $96.17
    Unit price per

PCTP450


11 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $93.07
25 $88.77
100 $84.86
250 $80.14
500 $76.94
Lead time for qty above 11:  Ships in 6-8 Weeks

Shipping calculated at checkout.

PCTP450: PCTEL / Maxrad Black Heavy Duty Flexible Antenna - Elevated Feed Point - UHF 450-470 MHz - TNC Male - IP67 - 2 dBi

More InfoDocumentsSpecifications Reviews

The PCTP heavy-duty mobile antennas feature a rugged, flexible design that provides long-lasting performance and reliability under very extreme environmental conditions.



More Information

The PCTP heavy-duty mobile antennas feature a rugged, flexible design that provides long-lasting performance and reliability under very extreme environmental conditions.

Features:

  • Ground plane independent for reliable performance and added installation flexibility
  • Heavy-duty, flexible radome design absorbs shock impact for applications requiring a ruggedized antenna solution
  • Wideband coverage: ready to use without added field tuning
  • UV-stable polyurethane housing withstands severe installation applications. This housing makes the antenna ideal for vehicular installations exposed to extreme temperatures and high vibration conditions, including construction trucks, agriculture tractors and mining vehicles

Documents


Specifications

SKU PCTP450
Manufacturer Part Number PCTP450
Manufacturer PCTEL
Antenna Category UHF (380-600 MHz)
Working Frequency 450-470 MHz
Gain 2 dBi
Antenna Style Blade or Stubby Antennas
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohm
Max Input Power (W) 5
VSWR: < X: 1 < 2.5:1
Height/Length (inches) 13
Height/Length (mm) 330
Thickness/Diameter (inches) 0.62
Thickness/Diameter (mm) 15.74
Material UV-Stable Polyurethane
Operating Temp (celsius) -40°C to +85°C
Mount Style Permanent
Color Black

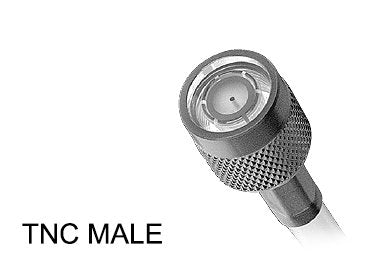

Connector 1 TNC-Male
IP Rating IP67
Ground Plane Required No
Product Condition New
