Need help choosing an antenna? Need to design a custom antenna? WE CAN HELP: techsupport@arcadianinc.com

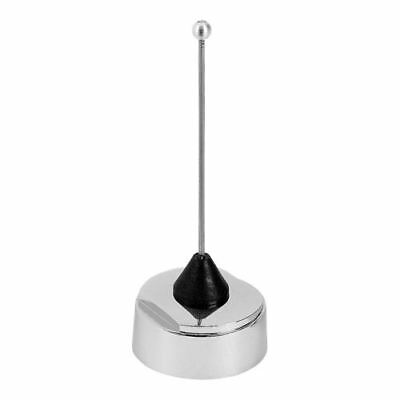

PCTCN7080: PCTEL / Maxrad High, Wide-band, and Optimized Electrical Performance LTE Corrosion Resistance 740-870 MHz Mates with All 1-1/8-18 Thread Mounts, Including 3/4 Mounts

  • $8.46
    Unit price per

PCTCN7080


89 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $8.16
25 $7.88
100 $7.62
250 $7.25
500 $6.82
1000 $6.53
2500 $6.35
Lead time for qty above 89:  Ships in 8-10 Weeks

Shipping calculated at checkout.

PCTCN7080: PCTEL / Maxrad High, Wide-band, and Optimized Electrical Performance LTE Corrosion Resistance 740-870 MHz Mates with All 1-1/8-18 Thread Mounts, Including 3/4 Mounts

More InfoDocumentsSpecifications Reviews

PCTEL’s high performance chrome nut LTE antenna offers a durable, super flexible design and reinforced brass button contact for maximum durability against external shock or limited vehicle height clearance. Wideband performance, attractive “Titanium gray” reflective finish and sleek drop shape rod tip, combined with market competitive prices, makes this antenna one of the best values on the marketplace.

This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

PCTEL’s high performance chrome nut LTE antenna offers a durable, super flexible design and reinforced brass button contact for maximum durability against external shock or limited vehicle height clearance. Wideband performance, attractive “Titanium gray” reflective finish and sleek drop shape rod tip, combined with market competitive prices, makes this antenna one of the best values on the marketplace.

Features
  • Optimized bandwidth performance
  • High-Tech “Titanium gray” reflective plating - Closely mimics the color of the metallic surface on which the antenna is installed, nicely complementing the appearance of public safety, livery and service vehicles
  • Gold plated, brass contact button interface - Provides optimized electrical performance, corrosion resistance and maximum 100lb pull force resistance for long lasting, trouble-free operation
  • Tear drop style rod tip - Less prone to detachment due to impact (factory tuned models only)
  • Heavy duty zinc die cast base for maximum durability and corrosion resistance under extreme weather conditions
  • Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts for simple installation and/or replacement

Documents


Specifications

SKU PCTCN7080
Manufacturer Part Number PCTCN7080
Manufacturer PCTEL
Antenna Category 700/800 MHz
Working Frequency 740-870 MHz
Gain Unity
Antenna Style Quarter Wave Whip
Bands Single
SISO or MIMO SISO
Impedance 50
Max Input Power (W) 150
VSWR: < X: 1 < 2.0:1
Height/Length (inches) 3.3
Height/Length (mm) 83.82
Mount Pattern Permanent
Color Chrome
OK for Outdoor Use Yes
Vehicular Yes
Product Condition New
