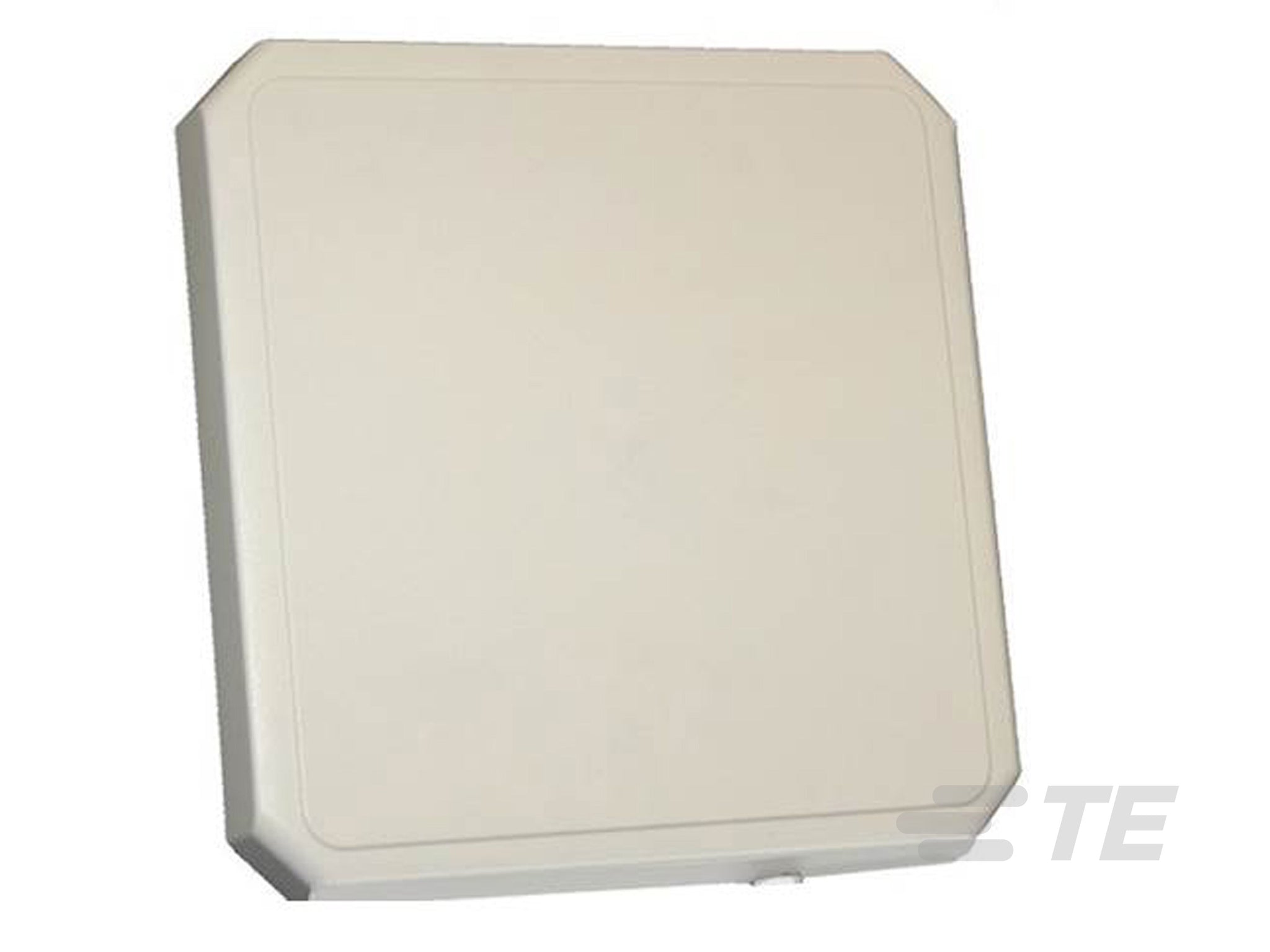

PAL90209HFNF 10x10 inch IP-67 Rated Left Hand Circularly Polarized RFID Antenna - FCC

  • $217.35
    Unit price per

PAL90209H-FNF


106 Can ship immediately
Lead time for qty above 106:  Ships in 10-12 Weeks

Shipping calculated at checkout.

PAL90209HFNF 10x10 inch IP-67 Rated Left Hand Circularly Polarized RFID Antenna - FCC

More InfoSpecifications Reviews

Left Hand Circularly Polarized, 902-928 Mhz, 9 dBic, 10 x 10 inch, Fixed N-Female Connector.  Equivalent to PAL90209H-IT1

*A note about Antenna Polarity:
For most RFID applications, right and left hand polarity antennas may be used interchangeably.



More Information


Specifications

SKU PAL90209HFNF
Manufacturer Part Number PAL90209H-FNF
Manufacturer Laird
Working Frequency 902-928 MHz
Antenna Category RFID (865-928 MHz)
IP Rating 67
Polarity Left Hand Circular
Gain 9
Horizontal/Azimuth Beamwidth 70
Vertical/Elevation Beamwidth 70
Connector Type Connector - Rear
Connector 1 N-Female
Height/Length (inches) 10.2
Height/Length (mm) 259
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 34
Width (inches) 10.2
Width (mm) 259
Weight (lbs) 2.3
Weight (grams) 1040
Material ABS Housing
Mount Style 4 x Threaded Stud 1/4-20
Includes 4 each: flast washers, lock washers & hex nuts
Product Condition New
