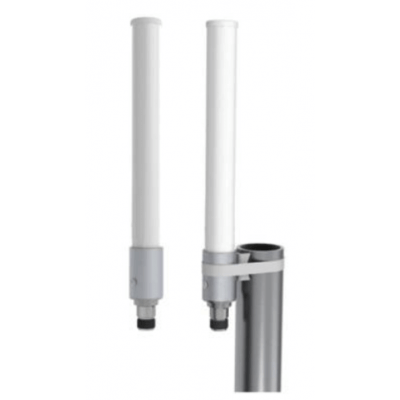

OC69421-FNM: Outdoor Rated 3G/4G/LTE and 5G/CBRS Omnidirectional Stick Antenna - N-Male Connector
OC69421-FNM
Shipping calculated at checkout.
OC69421-FNM: Outdoor Rated 3G/4G/LTE and 5G/CBRS Omnidirectional Stick Antenna - N-Male Connector
More InfoDocumentsSpecifications Reviews
Outdoor Rated 3G/4G/LTE and 5G/CBRS Omnidirectional Stick Antenna - N-Male Connector
***This item is subject to an MOQ of 8 pcs***
More Information
The OC69421 antenna is an expanded bandwidth omnidirectional antenna covering the global cellular bands including many mid-band sub-6GHz 5G and CBRS frequencies. It can be used in both indoor and outdoor applications. It comes complete with mast mounting hardware and includes a UV stable radome enclosure that provides years of use without degradation to either mechanical properties or aesthetics.
Documents
We Also Recommend
SPDA24700/2700
SPDA24700/2700 4G LTE Swivel Blade Dipole Antenna from Pulse Larsen with SMA-Male connector
$26.78
$26.78
$26.14
$26.14
View Details
TRA6927M3PW-001
TRA6927M3PW-001 | Antenna- 698-2700 MHz 3G/4G-LTE - N Female - Ground Plane Reqd
$165.99
$165.99
$70.59
$70.59
View Details
RBDM-55-SS-6
2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Machine To Machine Communication. RBDM-55-SS-6
$118.80
$118.80
$110.00
$110.00
View Details
RSGB-698/2700-3-NF
Cellular 3G 4G LTE Omni low profile / disguise Antenna with N-Female Connector, Black Permanent Mount IP67, RSGB-698/2700-3-NF
$65.00
$65.00
View Details
Specifications
| SKU | OC69421FNM |
|---|---|
| Manufacturer Part Number | OC69421-FNM |
| Manufacturer | TE Connectivity |
| Antenna Category | 4G/LTE (698-2700 MHz) |
| Working Frequency | 698-960 MHz |
| Gain | 1.5 |
| Working Frequency 2 | 1710-2690 MHz |
| Gain 2 | 3.5 |
| Working Frequency 3 | 3300-4200 MHz |
| Gain 3 | 5.0 dBi |
| Antenna Style | Omnidirectional Base Station Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 2 |
| Horizontal/Azimuth Beamwidth | 360 |
| Vertical/Elevation Beamwidth | 75 |
| Height/Length (inches) | 9.8 |
| Height/Length (mm) | 248 |
| Thickness/Diameter (inches) | 1 |
| Thickness/Diameter (mm) | 24.5 |
| Weight (lbs) | 0.35 |
| Weight (grams) | 156 |
| Material | Polycarbonate |
| Operating Temp (celsius) | -30 TO +70 |
| Mount Style | Mast Or Wall |
| Color | White |
| Connector Type | Connector - Bottom |
| Connector 1 | N-Male |
| Includes | Mast Mount Kit |
| OK for Outdoor Use | Yes |
| Product Condition | New |
