OC24006HFNM: Horizontally Polarized Omni Antenna, 2400-2500 MHz, 6 dBi Gain with N Male connector

  • $53.92
    Unit price per

OC24006HFNM


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $50.27
25 $47.07
100 $43.61
250 $41.19
500 $39.02
Factory lead time:  Ships in 8-10 Weeks

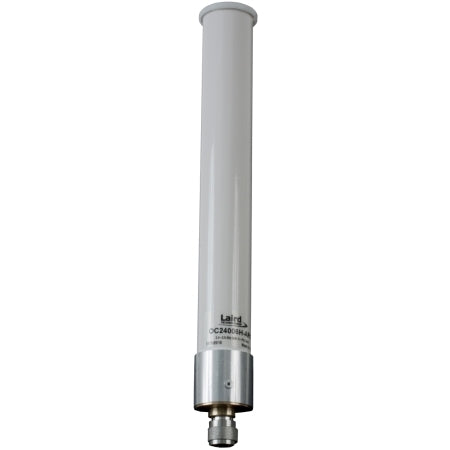

OC24006HFNM: Horizontally Polarized Omni Antenna, 2400-2500 MHz, 6 dBi Gain with N Male connector

OC24006HFNM: Horizontally Polarized Omni Antenna, 2400-2500 MHz, 6 dBi Gain with N Male connector

More InfoDocumentsSpecifications Reviews

OC24006HFNM is a 2400-2500 MHz omnidirectional, collinear, horizontally polarized array especially designed to complement interior or exterior mounted wireless network systems.


More Information

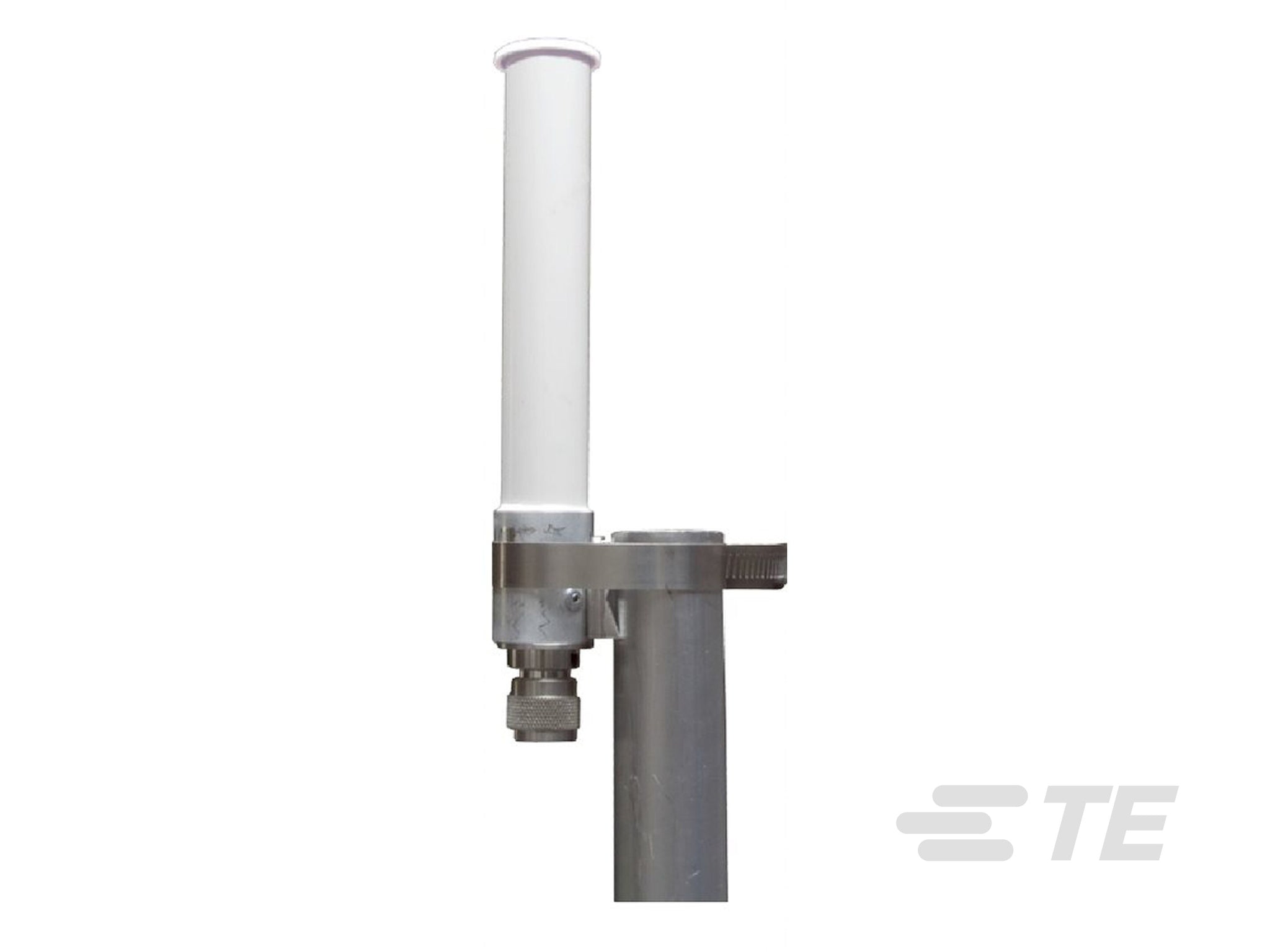

An integrated RF connector is imbedded in the antenna base cap for direct AP mounting. Special venting permits either upright or inverted orientation in outdoor locations. The antenna may also be pole mounted when separation from the AP is required for optimum positioning.

Documents


Specifications

SKU OC24006HFNM
Manufacturer Part Number OC24006HFNM
Manufacturer Laird
Product Condition New
Directional or Omni Omnidirectional
Frequency 1 2400-2500 MHz
Gain 1 6 dBi
Impedance 50Ω
Max Input Power (W) 10
VSWR: < X: 1 2.0:1
Weight (lbs) 0.57
Material Polycarbonate, UV White
Operating Temp (celsius) -30°C to +70°C
Mount Style Connector Fixed or Mast Mount Kit (Upright/Inverted Orientations)
Ground Plane Required No
