NMO150C Pulse-Larsen 5/8 Wave Whip 144-174 (2m) MHz Omni antenna NMO Base

  • $31.10
    Unit price per

NMO150C


1 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $28.84
25 $26.43
100 $24.78
250 $23.32
500 $21.73
Factory lead time:  Ships in 2-4 Weeks

NMO150C Pulse-Larsen 5/8 Wave Whip 144-174 (2m) MHz Omni antenna NMO Base

More InfoDocumentsSpecifications Reviews

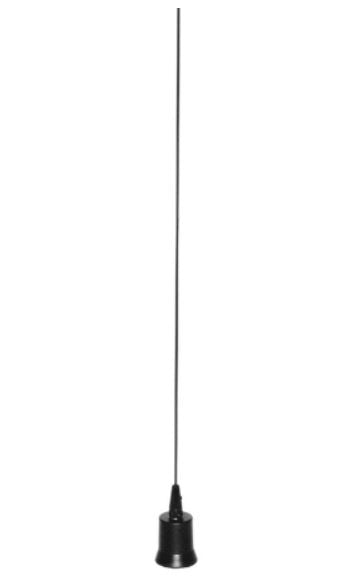

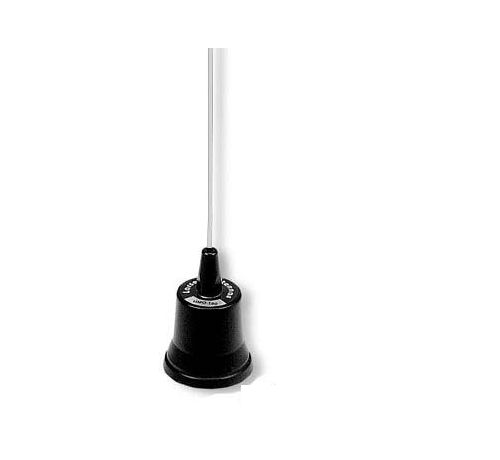

The Pulse-Larsen NMO150C is a 5/8 Wave Whip Omnidirectional Antenna operating at 144-174 (2m) MHz with NMO Mount Base


More Information

The Pulse-Larsen NMO150C is a 5/8 Wave Whip Omnidirectional Antenna operating at 144-174 (2 m) MHz with NMO Mount Base

Founded in 1965 as Larsen Electronics, the company was acquired in 1999 by Radiall, then later by Pulse Electronics. Most of the company's antennas, mounts and cable kits are still made in the USA in the original factory in Vancouver, Washington. With over 2,000 standard antennas deliverable on short-notice, Pulse-Larsen is the recognized industry leader for LMR/Land Mobile Radio and Public Safety / M2M communications. All Pulse / Larsen antennas, cable kits and NMO mounts are covered by the original Larsen No Nonsense 2-Year Warranty.

These antennas have standard NMO / New Motorola mounting. NMO cable kits, such as the NMOKHFUD series can be purchased separately on this website.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.


Documents


Specifications

SKU NMO150C
Manufacturer Part Number NMO150C
Manufacturer Pulse
Product Condition New
Antenna Style 5/8 Wave Whip
Antenna Style 5/8 Wave Whip
Antenna Category M2M 140-300 MHz
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 144-174 MHz
Gain 1 5.14 dBi
Max Input Power (W) 200
VSWR: < X: 1 2:01
Height/Length (inches) 51.5
Height/Length (mm) 1308.1
Weight (lbs) 0.75
Weight (grams) 340.91
Mount Style NMO
Color Chrome
Connector 1 NMO
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
