NMO150/450/800 Pulse-Larsen Tri Band Whip 150-940 MHz (2m, 70cm and 806-940) MHz Omni antenna NMO Base

  • $33.51
    Unit price per

NMO150/450/800


53 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $31.07
25 $28.48
100 $26.70
250 $25.13
500 $23.41
Factory lead time:  Ships in 2-4 Weeks

NMO150/450/800 Pulse-Larsen Tri Band Whip 150-940 MHz (2m, 70cm and 806-940) MHz Omni antenna NMO Base

More InfoSpecifications Reviews

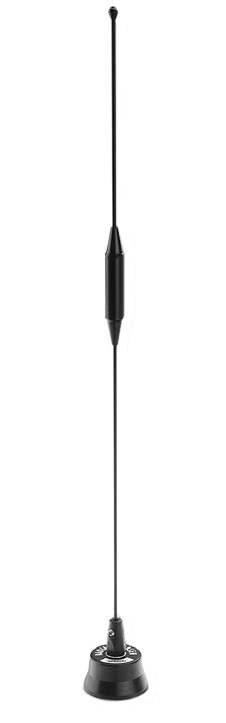

The Pulse-Larsen NMO150/450/800 is a Tri Band Whip Omnidirectional scanner Antenna operating at 150-165 MHz (2m band), 450-470 MHz (70cm band), 806-940 MHz (ISM Band) with NMO Mount Base. Larsen NMO150/450/800 tri band nmo antenna is 16.5" long and is made of stainless steel. It is ideal for Public safetly applications that needs multiple bands and it can also be used as a scanner antenna or for Ham bands. It is compatible with Yaesu FT-7900RE, Baofeng UV5R+ transceivers and Uniden BC95XLT, BCD536HP scanner. Use a NMO mount with this antenna.

For Motorola all-band and Harris all-band radios, buy NMO15/0450/758.



More Information

The Pulse-Larsen NMO150/450/800 is a Tri Band Whip Omnidirectional Antenna operating at 150-165 MHz, 450-470 MHz, 806-940 MHz with NMO Mount Base

Founded in 1965 as Larsen Electronics, the company was acquired in 1999 by Radiall, then later by Pulse Electronics. Most of the company's antennas, mounts and cable kits are still made in the USA in the original factory in Vancouver, Washington. With over 2,000 standard antennas deliverable on short-notice, Pulse-Larsen is the recognized industry leader for LMR/Land Mobile Radio and Public Safety / M2M communications. All Pulse / Larsen antennas, cable kits and NMO mounts are covered by the original Larsen No Nonsense 2-Year Warranty.

These antennas have standard NMO / New Motorola mounting. NMO cable kits, such as the NMOKHFUD series can be purchased separately on this website.


Specifications

SKU NMO150450800
Manufacturer Part Number NMO150/450/800
Manufacturer Pulse
Product Condition New
Antenna Style Tri Band Whip
Antenna Style Tri Band Whip
Antenna Category M2M Full Spectrum / Multi-Band
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 150-165 MHz
Gain 1 2.14 dBi
Frequency 2 450-470 MHz
Gain 2 2.14 dBi
Frequency 3 806-940 MHz
Gain 3 2.14 dBi
VSWR: < X: 1 2:01
Height/Length (inches) 16.5
Height/Length (mm) 419.1
Width (inches) 2
Thickness/Diameter (inches) 2
Weight (lbs) 0.75
Weight (grams) 340.91
Mount Style NMO
Color Black
Connector 1 NMO
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
