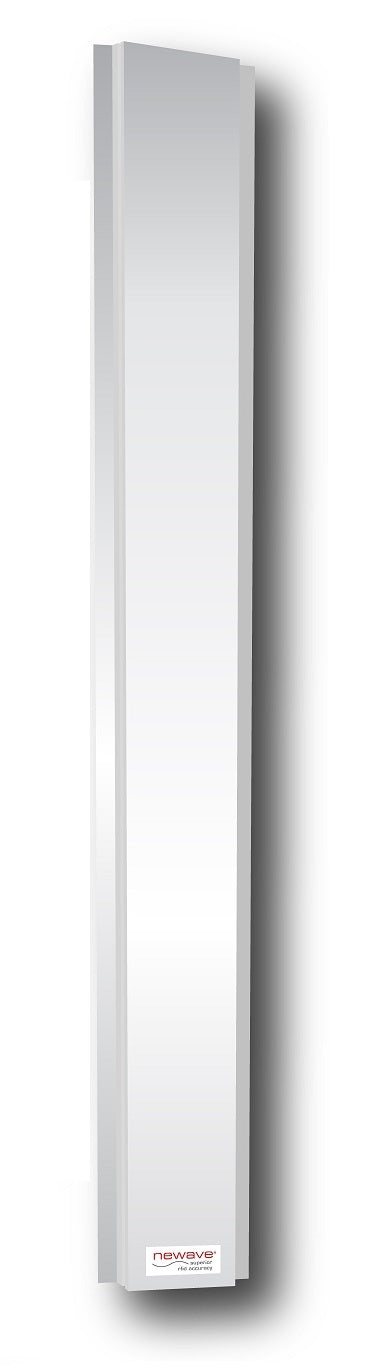

N7: NSS Wave®-N7 FCC(902-928 MHz) Omni directional Multi Linear Antenna with RP TNC connector

  • $290.00
    Unit price per

N7


6 Can ship immediately
Factory lead time:  Ships in 1-2 Weeks

N7: NSS Wave®-N7 FCC(902-928 MHz) Omni directional Multi Linear Antenna with RP TNC connector

N7: NSS Wave®-N7 FCC(902-928 MHz) Omni directional Multi Linear Antenna with RP TNC connector

More InfoDocumentsSpecifications Reviews

N7: NSS Wave-N7 FCC(902-928 MHz) Omni directional Multi Linear Antenna with RP TNC connector.

Features:

  1. User Defined Zone Coverage Range: 2x2x2 feet to 10x10x10 feet
  2. Gain: 5.5 dBi
  3. VSWR: Less than 1.7:1
  4. Polarization: Multi-Linear
  5. Maximum input power: 10 Watts
  6. H-Plane Beamwidth: 360 degrees
  7. E-Plane Beamwidth: 360 degrees


More Information

N7: NSS Wave-N7 FCC(902-928 MHz) Omni directional Multi Linear Antenna with RP TNC connector.

Features:

  1. User Defined Zone Coverage Range: 2x2x2 feet to 10x10x10 feet
  2. Gain: 5.5 dBi
  3. VSWR: Less than 1.7:1
  4. Polarization: Multi-Linear
  5. Maximum input power: 10 Watts
  6. H-Plane Beamwidth: 360 degrees
  7. E-Plane Beamwidth: 360 degrees

Documents


Specifications

SKU N7
Manufacturer Part Number N7
Manufacturer NeWave Sensor Solutions
Product Condition New
Antenna Category RFID (865-928 MHz)
Bands Single
Polarity Dual Polarity
Gain 5.5 dBi
Horizontal/Azimuth Beamwidth 360 Degree
Vertical/Elevation Beamwidth 360 Degree
Height/Length (inches) 87
Height/Length (mm) 2200
Operating Temp (celsius) -4 F to 140 F (--20 C to 60 C)
Thickness/Diameter (inches) 1.5 / 2.5 with Foam Insulation
Thickness/Diameter (mm) 38
Width (inches) 9
Width (mm) 229
Weight (lbs) 4
Weight (grams) 1800
Color White
