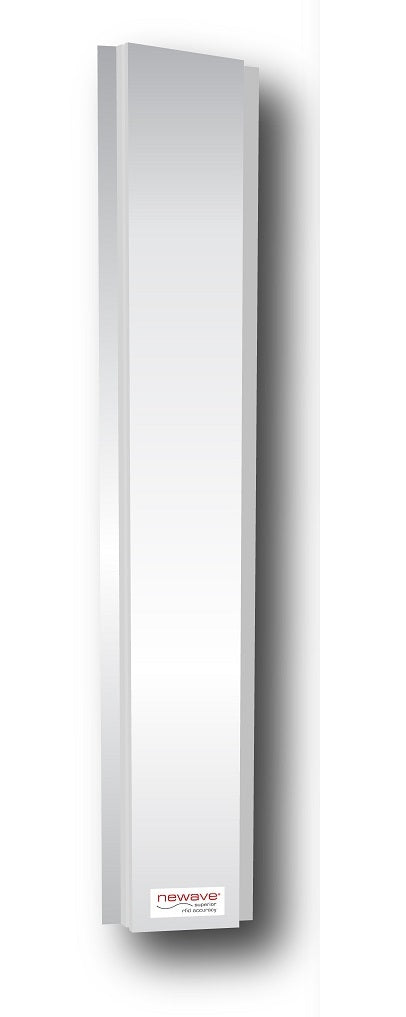

N5: NSS Wave®-N5 FCC(902-928 MHz) Omni directional Multi Linear Antenna with RP TNC Female connector
NSS Wave-N5
Shipping calculated at checkout.
N5: NSS Wave®-N5 FCC(902-928 MHz) Omni directional Multi Linear Antenna with RP TNC Female connector
More InfoDocumentsSpecifications ReviewsN5: NSS Wave-N5 FCC(902-928 MHz) Omni directional Multi Linear Antenna with RP TNC Female connector.
Features:
- User Defined Zone Coverage Range: 2x2x2 feet to 10x10x10 feet
- Gain: 4.5 dBi
- VSWR: Less than 1.7:1
- Polarization: Multi-Linear
- Maximum input power: 10 Watts
- H-Plane Beamwidth: 360 degrees
- E-Plane Beamwidth: 360 degrees
***Pease Note This Item is Non-Cancelable and Non-Returnable***
More Information
Specifications
| SKU | N5 |
|---|---|
| Manufacturer Part Number | NSS Wave-N5 |
| Manufacturer | NeWave Sensor Solutions |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| Polarity | Dual Polarity |
| Gain | 4.5 dBi |
| Horizontal/Azimuth Beamwidth | 360 Degree |
| Vertical/Elevation Beamwidth | 360 Degree |
| Height/Length (inches) | 61 |
| Height/Length (mm) | 1550 |
| Operating Temp (celsius) | -4 F to 140 F (--20 C to 60 C) |
| Thickness/Diameter (inches) | 1.5 / 2.5 with Foam Insulation |
| Thickness/Diameter (mm) | 38 |
| Width (inches) | 9 |
| Width (mm) | 229 |
| Weight (lbs) | 3 |
| Weight (grams) | 1400 |
| Product Condition | New |
