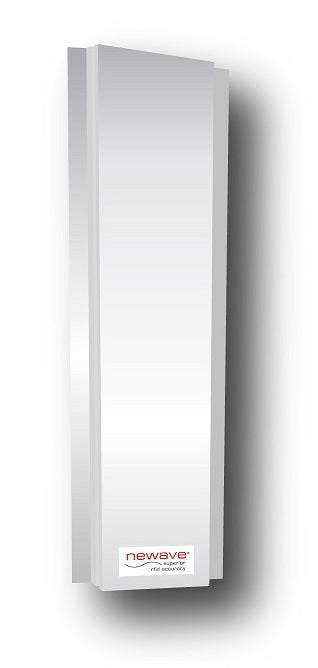

N3-IG: NSS Wave® N3-IG FCC (902-928 MHz) Omni directional Multi Linear Antenna with RP TNC Female Connector - Improved Ground Plane
NSS Wave-N3-IG
Shipping calculated at checkout.
N3-IG: NSS Wave® N3-IG FCC (902-928 MHz) Omni directional Multi Linear Antenna with RP TNC Female Connector - Improved Ground Plane
More InfoDocumentsSpecifications ReviewsN3-IG: NSS Wave-N3-IG FCC (902-928 MHz) Omni directional Multi Linear Antenna with RP TNC Female connector - Improved Ground Plane
Features:
- User Defined Zone Coverage Range: 2x2x2 feet to 10x10x10 feet
- Gain: 3.0 dBi
- VSWR: Less than 1.7:1
- Polarization: Multi-Linear
- Maximum input power: 10 Watts
- H-Plane Beamwidth: 360 degrees
- E-Plane Beamwidth: 360 degrees
More Information
Specifications
| SKU | N3IG |
|---|---|
| Manufacturer Part Number | NSS Wave-N3-IG |
| Manufacturer | NeWave Sensor Solutions |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| Polarity | Dual Polarity |
| Gain | 3.0 dBi |
| Horizontal/Azimuth Beamwidth | 360 Degree |
| Vertical/Elevation Beamwidth | 360 Degree |
| Height/Length (inches) | 36 |
| Height/Length (mm) | 915 |
| Operating Temp (celsius) | -4 F to 140 F (--20 C to 60 C) |
| Thickness/Diameter (inches) | 1.5 / 2.5 with Foam Insulation |
| Thickness/Diameter (mm) | 38 |
| Width (inches) | 9 |
| Width (mm) | 229 |
| Weight (lbs) | 1.7 |
| Weight (grams) | 800 |
| Product Condition | New |
