N2480-100U: Dual-band, Vertically Polarized, Antenna design for IEEE 802.11 a/b/g and 802.11n

  • $21.00
    Unit price per

N2480-100U


160 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $19.09
25 $16.80
100 $15.00
250 $10.50
500 $7.64
1000 $7.00
2500 $6.46
5000 $6.00
10000 $5.60
Lead time for qty above 160:  Ships in 6-8 Weeks

Shipping calculated at checkout.

N2480-100U: Dual-band, Vertically Polarized, Antenna design for IEEE 802.11 a/b/g and 802.11n

More InfoDocumentsSpecifications Reviews

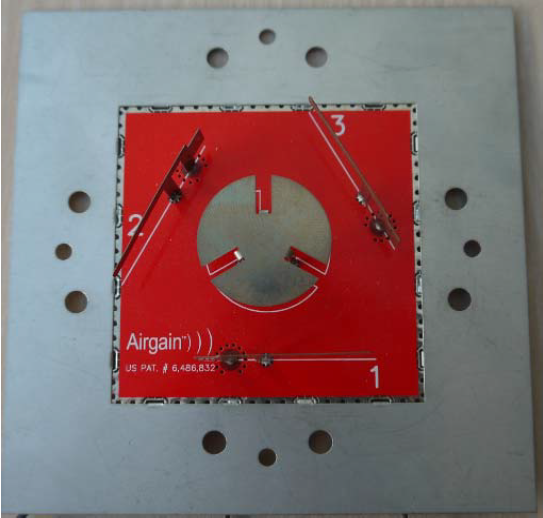

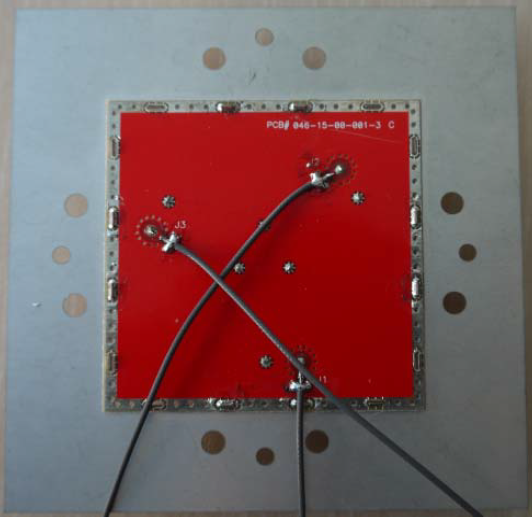

The Model N2480 Dual Band, MIMO antenna utilizes patented beam forming technology to deliver up to 200 percent greater signal strength and receive sensitivity than conventional dipole solutions.The Model N2480’s superior performance is derived by combining the benefits of three high gain directional antenna elements with high isolation between each beam. This directionality and high isolation improves the SNR in MIMO channels while enhancing channel modes, thereby increasing the range and throughput of WLAN, 802.11n, devices. The Model N2480 supports dual band operation in the 2.4GHz band and the 4.9 to 5.9GHz band and is compatible with existing draft-N systems in 2x3 and 3x3 configurations. The unique design of the Model N2480 also allows for integration inside access points, routers and gateways, eliminating the need for external antennas.



More Information

Features:

•Dual-band, vertically polarized, antenna design for IEEE 802.11 a/b/g and 802.11n

•Three independent and highly directional beams with excellent front-to-back ratio

•High isolation between all the beams

•Wide Bandwidth

•Low profile with high peak gain (Higher SNR)

•Independent, pre-tuned, subsystem , easily integrated into new products

•Low Cost and High performance


Documents


Specifications

SKU N2480100U
Manufacturer Part Number N2480-100U
Manufacturer Airgain
Antenna Category WiFi (2.4 & 5.0 GHz)
Ground Plane Required No
Product Condition New
