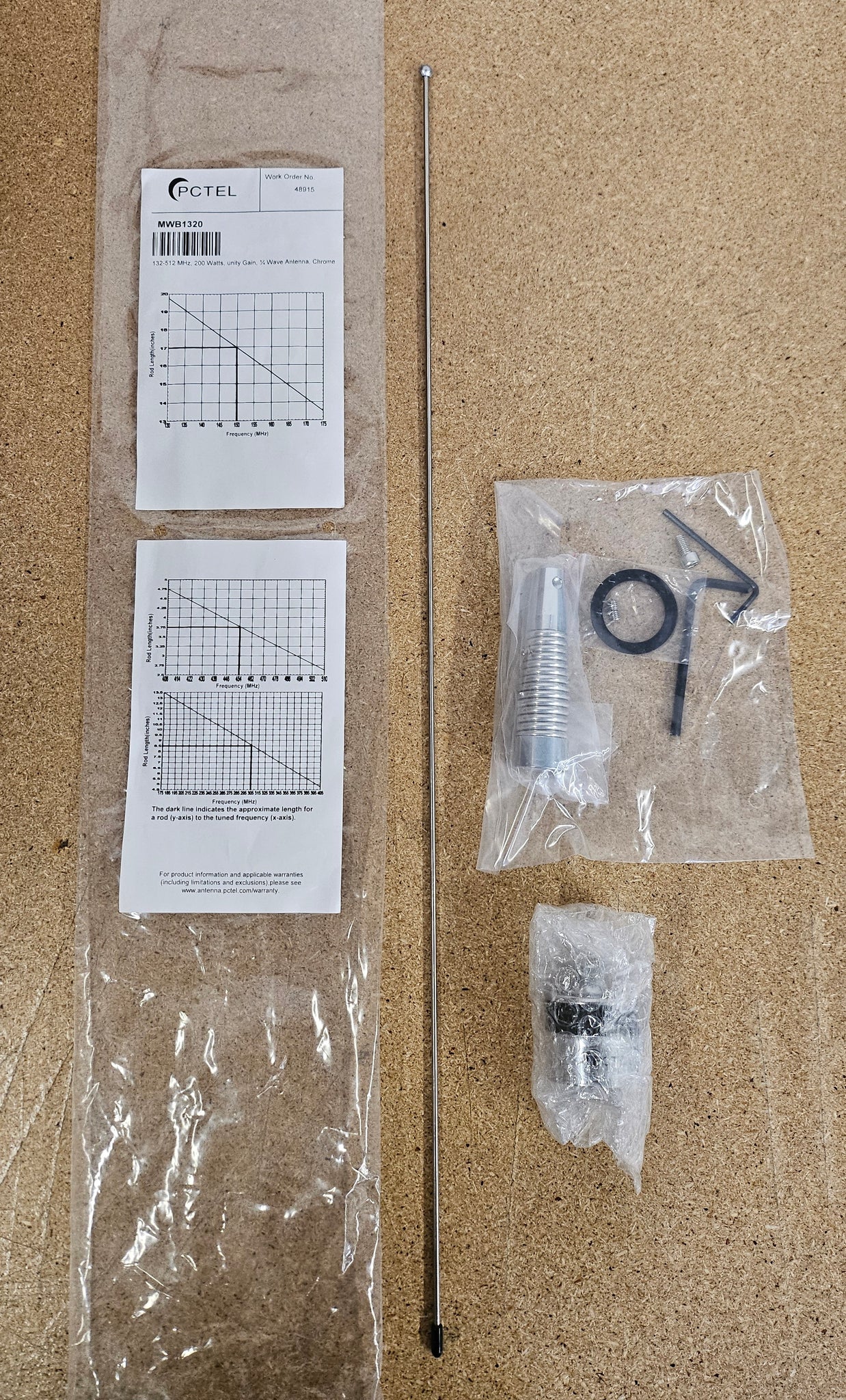

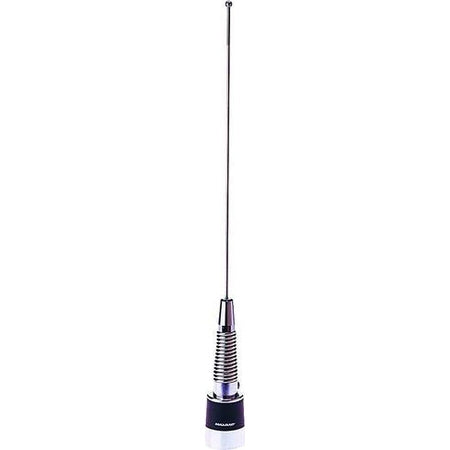

MWB1320: 1/4 Wave VHF Wide band Antenna - VHF and UHF 132-512 MHz - Unity - Field Tune

  • $26.99
    Unit price per

MWB1320


71 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $24.67
25 $24.20
100 $23.65
250 $22.47
500 $21.85
1000 $21.40
2500 $20.97
Lead time for qty above 71:  Ships in 8-10 Weeks

MWB1320: 1/4 Wave VHF Wide band Antenna - VHF and UHF 132-512 MHz - Unity - Field Tune

MWB1320: 1/4 Wave VHF Wide band Antenna - VHF and UHF 132-512 MHz - Unity - Field Tune

More InfoDocumentsSpecifications Reviews

These VHF field tune antennas address equipment inter-operability challenges by providing superior bandwidth coverage without sacrificing antenna performance. Featuring stainless steel heavy-duty spring and molded polymer base, these antennas are built to withstand high vibration conditions.

This Antenna Requires a NMO Mount. Please click here to find all Thru Hole NMO Mounts or Magnetic NMO Mounts.



More Information

These VHF field tune antennas address equipment inter-operability challenges by providing superior bandwidth coverage without sacrificing antenna performance. Featuring stainless steel heavy-duty spring and molded polymer base, these antennas are built to withstand high vibration conditions.

Features

  • The matching coil is wound around a low-loss coil form to withstand severe operating conditions
  • Outstanding bandwidth performance
  • Rugged compact design ideal for high vibration conditions
  • Mates with all 1-1/8” -18 thread mounts, including 3/4” mounts

Documents


Specifications

SKU MWB1320
Manufacturer Part Number MWB1320
Manufacturer PCTEL
Antenna Category VHF (132-220 MHz)
Working Frequency 132-512 MHz
Gain 0 dBi
Antenna Style Quarter Wave Whip
Max Input Power (W) 200 W
Material Stainless Steel
Ground Plane Required No
Product Condition New
