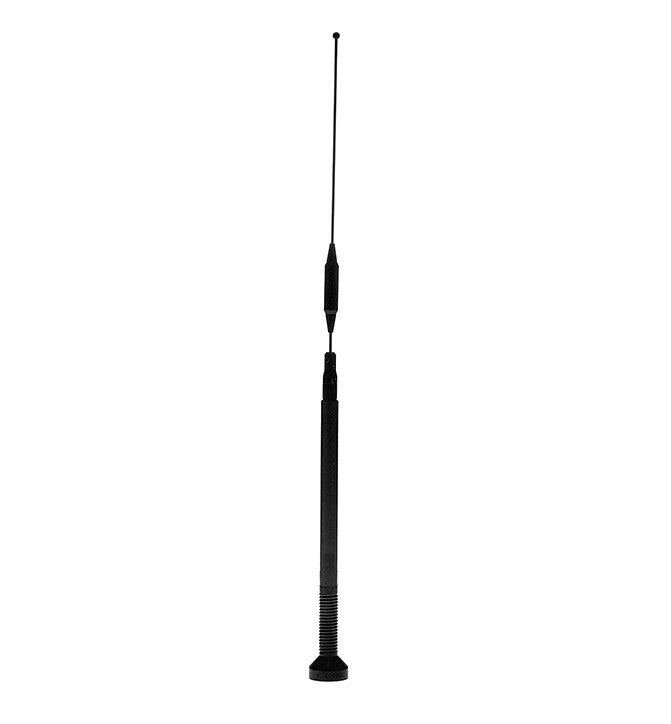

MUF9115: PCTEL / Maxrad Chrome Elevated Feed Point Antenna - 900 MHz Band ISM 896-940 MHz - 5 dB
MUF9115
Shipping calculated at checkout.
MUF9115: PCTEL / Maxrad Chrome Elevated Feed Point Antenna - 900 MHz Band ISM 896-940 MHz - 5 dB
More InfoDocumentsSpecifications ReviewsDesigned for installations that lack a suitable ground plane, these antennas feature a tapered loading coil jacket with chrome-plated fittings and an optional heavy-duty stainless steel spring. The base loaded matching network supports the collinear or trilinear rod sections.
This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
More Information
Designed for installations that lack a suitable ground plane, these antennas feature a tapered loading coil jacket with chrome-plated fittings and an optional heavy-duty stainless steel spring. The base loaded matching network supports the collinear or trilinear rod sections.
Features
- Rugged construction; optional heavy-duty shock spring
- Sleek, sturdy, sealed phasing coil design
- Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts
Documents
We Also Recommend
RNMOT-58U-NOC-B-17
Brass 3/4 Inch Thru-Hole NMO Mount with 17 Ft. RG-58/U Cable and No Connectors
$18.76
$18.76
View Details
NMO34
NMO34: PCTEL 3/4" Hole NMO Permanent Mount, No Cable, No Connector
$11.21
$11.21
$7.28
$7.28
View Details
BMATM//NC25
BMATM//NC25: PCTEL / Maxrad 3/8"-3/4" hole NMO thu hole mount for thick plate, 25' RG58U cable and No Connector
$40.97
$40.97
$27.62
$27.62
View Details
Specifications
| SKU | MUF9115 |
|---|---|
| Manufacturer Part Number | MUF9115 |
| Manufacturer | PCTEL |
| Antenna Category | 900 MHz |
| Antenna Style | Base Coil Antennas |
| Ground Plane Required | No |
| Product Condition | New |
