MT-262013/TRH/A/K 7x7 inch High-Sensitivity Circularly Polarized RFID Antenna - FCC
MT-262013/TRH/A/K
Shipping calculated at checkout.
MT-262013/TRH/A/K 7x7 inch High-Sensitivity Circularly Polarized RFID Antenna - FCC
More InfoSpecifications Reviews

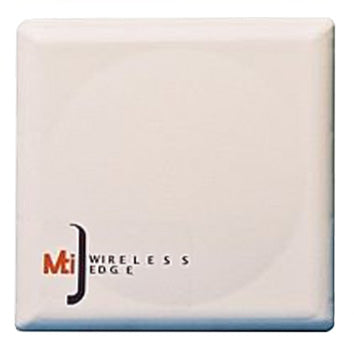

The MT-262013/TRH/A/K is a high-sensitivity circularly polarized outdoor RFID Antenna from MTI measures in at only 7x7 inches. This unit operates at 7.5 dBic gain, covers 72 x 77 degrees beamwidth, and is an excellent choice when high read-rates are essential, and the antenna is needed for passive UHF RFID applications in the FCC band of 902-928 Mhz. The antenna carries an IP67 rating, is well suited for outdoor installations such as parking gates, overhead race timing trusses, and distribution center yards. It comes with a fixed RPTNC-Female Connector on the back plate, and has 4 threaded mounting studs. This unit is an upgrade to the MT-262024/TRH/A/K
More Information
Specifications
| SKU | MT262013TRHAK |
|---|---|
| Manufacturer Part Number | MT-262013/TRH/A/K |
| Manufacturer | MTI |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| IP Rating | 67 |
| Polarity | Circular |
| Gain | 7.5 |
| Horizontal/Azimuth Beamwidth | 77 |
| Vertical/Elevation Beamwidth | 72 |
| Connector Type | Connector - Rear |
| Connector 1 | RP TNC-Female |
| Height/Length (inches) | 7 |
| Height/Length (mm) | 190 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 1.2 |
| Thickness/Diameter (mm) | 30 |
| Width (inches) | 7 |
| Width (mm) | 190 |
| Weight (lbs) | 1.5 |
| Weight (grams) | 800 |
| Material | Plastic |
| Mount Style | Mast or Wall |
| Product Condition | New |
