MT-262006/TRH/A/K

1367 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $125.00
Factory lead time:  Ships in 10-16 Weeks
MT-262006/TRH/A/K 12x12 inch UHF RFID Circularly Polarized Panel Antenna - RPTNC-F - FCC
MT-262006/TRH/A/K 12x12 inch UHF RFID Circularly Polarized Panel Antenna - RPTNC-F - FCC

MT-262006/TRH/A/K 12x12 inch UHF RFID Circularly Polarized Panel Antenna - RPTNC-F - FCC

More InfoDocumentsSpecifications Reviews

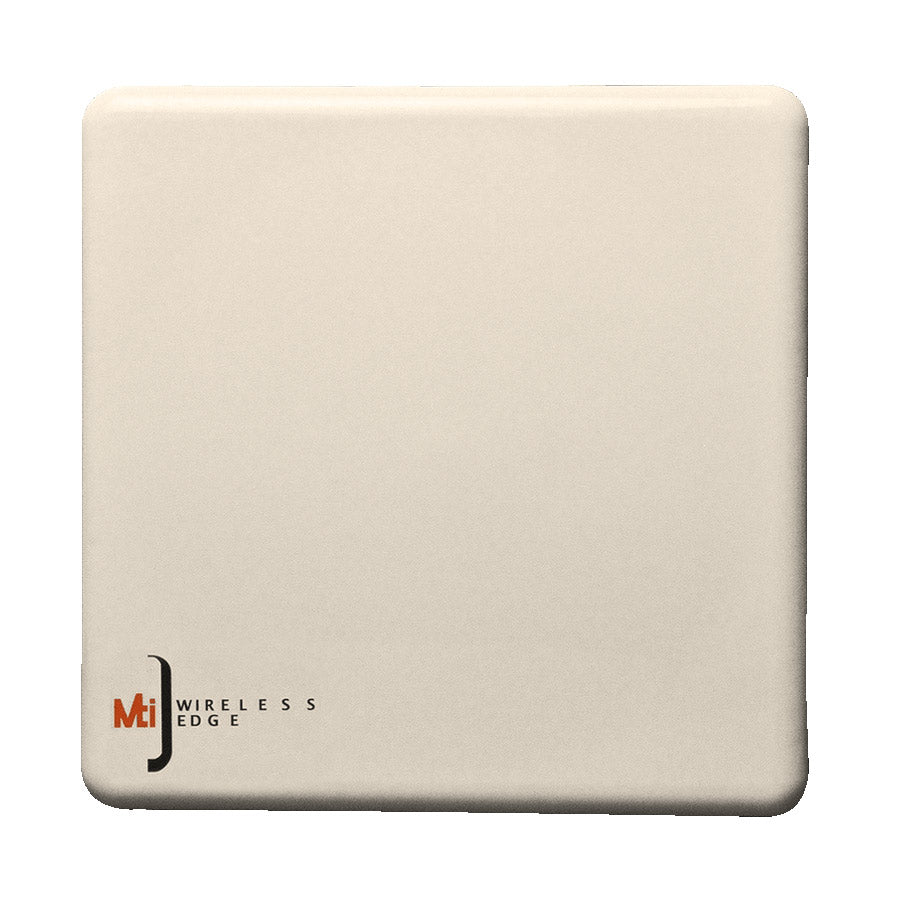

The MT-262006-TRH-A-K from MTI is a 12x12 inch, IP67 rated polarized RFID antenna operating at 902-928 Mhz FCC with 10.5 dBic gain and a fixed RPTNC female connector.


More Information

The MT-262006-TRH-A-K Circularly Polarized outdoor RFID Antenna from MTI measures in at 12x12 inches. This unit operates at 9 dBic gain, covers 63 x 63 degrees beamwidth, and is an excellent choice for passive UHF RFID applications in the FCC band of 902-928 Mhz. The MT-262006 carries an IP67 rating and is perfect for outdoor installations such as parking gates, overhead race timing trusses and distribution center yards. It comes with a fixed RPTNC-female connector on the back plate and  4 threaded mounting studs.

Use MT-120018 mounting bracket.

Documents

MTI MT262006TRHAK RFID Antenna Datasheet

We Also Recommend

Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
In Stock
RF MAX - RFID POWER MAPPER
Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
View Details
EZM6: 6 Inch Antenna Mounting Bracket - Fully Articulating Wall or Mast Mount for 2 or 4 Stud RFID Panel Antennas.
In Stock
EZ-M6-COMBO
EZM6: 6 Inch Antenna Mounting Bracket - Fully Articulating Wall or Mast Mount for 2 or 4 Stud RFID Panel Antennas.
View Details
R9029-WHP-RTF: High Performance - Wideband 12x12 inch IP-67 Circularly Polarized RFID Antenna - FCC & ETSI
In Stock
R9029-WHP-RTF
R9029-WHP-RTF: High Performance - Wideband 12x12 inch IP-67 Circularly Polarized RFID Antenna - FCC & ETSI

View Details
HDMNT-100MM: Heavy Duty Indoor Outdoor Mounting Bracket for Antenna, Computer Monitor or TV. 100mm VESA
In Stock
HDMNT-100MM
HDMNT-100MM: Heavy Duty Indoor Outdoor Mounting Bracket for Antenna, Computer Monitor or TV. 100mm VESA
View Details
R9029-XL-12SSF: 902-928 MHz Extra Large, 30x12 inch Circularly Polarized RFID Antenna - FCC
In Stock
R9029-XL-12SSF
R9029-XL-12SSF: 902-928 MHz Extra Large, 30x12 inch Circularly Polarized RFID Antenna - FCC
View Details

Specifications

SKU MT262006TRHAK
Manufacturer Part Number MT-262006/TRH/A/K
Manufacturer MTI
Product Condition New
Antenna Category RFID 902-928 MHZ FCC
Bands Single
IP Rating 67
Polarity Circular
Gain 9
Horizontal/Azimuth Beamwidth 63
Vertical/Elevation Beamwidth 63
Connector Type Connector - Rear
Connector 1 RP TNC-Female
Height/Length (inches) 12.2
Height/Length (mm) 310
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 1
Thickness/Diameter (mm) 25
Width (inches) 12.2
Width (mm) 310
Weight (lbs) 2.65
Weight (grams) 1200
Material Plastic
Color White
Mount Style 4 Stud
RTAS Cable Length RTAS MAT-1: 2.62 m / 8 ft 7 in.
Cable Length 15 Feet
