MT-262024/TRH/A/K 7x7 inch IP-67 Circularly Polarized RFID Antenna - FCC

  • $135.00
    Unit price per


3 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $125.00
Lead time for qty above 3:  Ships in 10-12 Weeks

MT-262024/TRH/A/K 7x7 inch IP-67 Circularly Polarized RFID Antenna - FCC

More InfoSpecifications Reviews

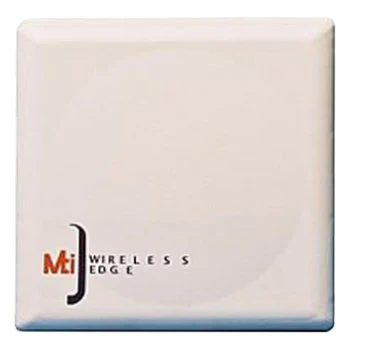

The MT-262024-TRH-A-K circularly polarized outdoor RFID Antenna from MTI measures in at only 7x7 inches. This unit operates at 7.5 dBic gain, covers 72 x 77 degrees beamwidth, and is an excellent choice when a smaller antenna is needed for passive UHF RFID applications in the FCC band of 902-928 Mhz. The antenna carries an IP67 rating, is well suited for outdoor installations such as parking gates, overhead race timing trusses, and distribution center yards. It comes with a fixed RPTNC-Female Connector on the back plate, and has 4 threaded mounting studs. Equivalent to Intermec 1309.17.0089 and 1309.17.0089A

More Information

Circularly Polarized RFID Antenna, 902-928 Mhz, 7.5 dBic, 7 x 7 inch, Fixed RPTNC-Female Connector


Manufacturer Part Number MT-262024/TRH/A/K
Manufacturer MTI
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating 67
Polarity Circular
Gain 7.5
Horizontal/Azimuth Beamwidth 77
Vertical/Elevation Beamwidth 72
Connector Type Connector - Rear
Connector 1 RP TNC-Female
Height/Length (inches) 7
Height/Length (mm) 190
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 1.2
Thickness/Diameter (mm) 30
Width (inches) 7
Width (mm) 190
Weight (lbs) 1.5
Weight (grams) 800
Material Plastic
Color White
Mount Style Mast or Wall
Product Condition New
