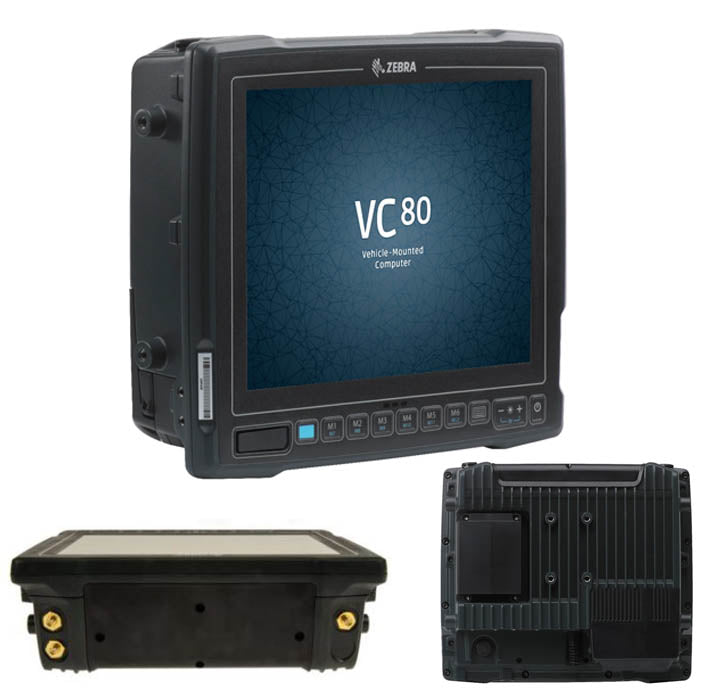

VC80 External WIFI/WLAN Antenna Range Extender Kit- Mag Mount Antenna Kit For Motorola Zebra VC80 Mobile Computers

  • $109.00
    Unit price per


0 in stock. Subject to factory lead time
Lead time:  Ships in 2-4 Weeks

Shipping calculated at checkout.

VC80 External WIFI/WLAN Antenna Range Extender Kit- Mag Mount Antenna Kit For Motorola Zebra VC80 Mobile Computers

More InfoSpecifications Reviews

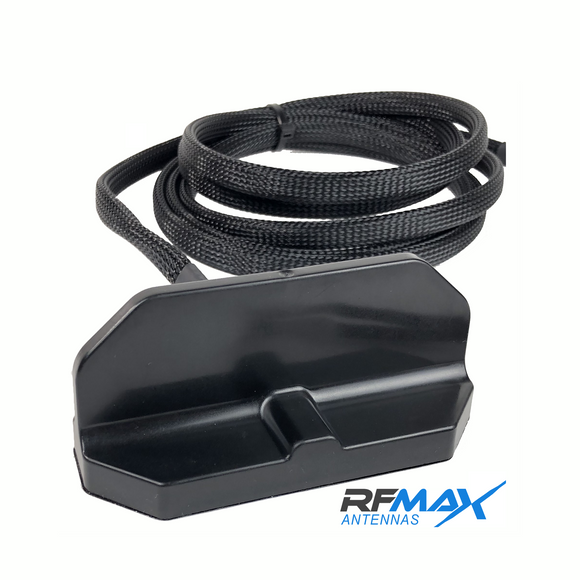

This RFMAX antenna range Extender Kit for the Motorola Zebra VC80 rugged Vehicle-Mounted Mobile Computers consists of TWO antennas for WiFi/WLAN (GPS is NOT included). These kits are typically used as external mounted Forklift Antennas to boost the range of your VC80's Wi-Fi connectivity by allowing you to install the antennas using the magnetic mounts on top of your forklift so as to eliminate any interference caused by the overhead guard. The kit includes TWO 2.4/5 Ghz antennas, magnetic mounts, cables and connectors. During installation, you *MUST* set your computer's settings to default to the external antennas.

More Information

RFMAX Range Extender Kits for the Motorola VC80 Vehicle-Mounted Mobile Computers provide a significant boost in RF / Wi-Fi connectivity from the VC80, which is typically used as a Forklift Antenna or truck mounted, to the wireless network in the warehouse or distribution center.

This kit consists of TWO antennas for MiMo WiFi/WLAN connectivity operating in the dual bands of 2.4 and 5.0 GHz with a gain of 4.5/5.5 dBi. NMO mount features a powerful magnet and is designed to mount outside the vehicle to eliminate RF interference and maximize performance.

This kit is equivalent to Zebra antenna kits AN2010 & AN2020


Manufacturer Part Number VC80-WLAN-KIT
Manufacturer RFMAX
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2.4 - 2.5 GHz
Gain 4.5 dBi
Working Frequency 2 4.9 - 5.9 GHz
Gain 2 5.5 dBi
Antenna Style Forklift Antenna
Polarity Vertical
Bands Multi
Directional or Omni Omnidirectional
VSWR: < X: 1 2.0:1
Height/Length (inches) 2.5
Mount Style 3/4 inch NMO High Frequency Mount
Color Black
Connector Type Cable - Side Entry
Cable Type RG-58/U
Number of Cables 1
Cable Length (inches) 12 feet
Connector 1 RP SMA-Male
Connector 3 RP SMA-Male
Includes antenna, mag mount, cable and connector
OK for Outdoor Use Yes
Vehicular Yes
Product Condition New
