MAX9053: PCTEL / Maxrad 3dB Chrome 896-940 MHz

  • $16.52
    Unit price per

MAX9053


76 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $16.39
25 $16.08
100 $15.71
250 $14.93
500 $14.51
1000 $14.22
2500 $13.93
Lead time for qty above 76:  Ships in 2-4 Weeks

Shipping calculated at checkout.

MAX9053: PCTEL / Maxrad 3dB Chrome 896-940 MHz

More InfoSpecifications Reviews

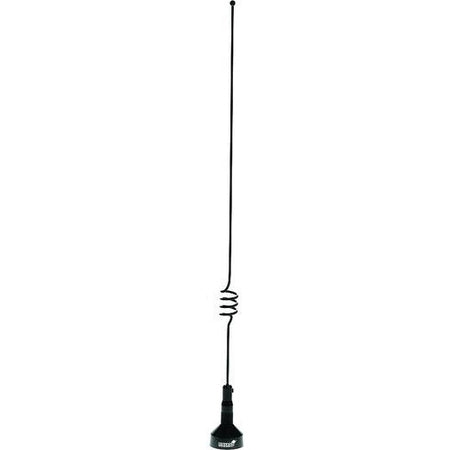

This PCTEL antenna features a rugged molded polymer base, plated springloaded contact pin and 100” diameter stainless steel whip for long-lasting, trouble-free operation. Select models are available with open or closed coil rod and can be ordered in an all-black finish. This series offers models for many types of wireless applications, including Wi-Fi and WiMAX mobility, VHF and UHF land mobile radio, 700 Public Safety, 800 MHz and 900 MHz digital radio and AMPS/ PCS voice/data support.



More Information

This PCTEL antenna features a rugged molded polymer base, plated springloaded contact pin and 100” diameter stainless steel whip for long-lasting, trouble-free operation. Select models are available with open or closed coil rod and can be ordered in an all-black finish. This series offers models for many types of wireless applications, including Wi-Fi and WiMAX mobility, VHF and UHF land mobile radio, 700 Public Safety, 800 MHz and 900 MHz digital radio and AMPS/ PCS voice/data support.

Features
  • Molded polymer base provides ruggedness and durability in harsh mobile environments.
  • Wideband performance (Wi-Fi and WiMAX models) provide coverage of 2.2 GHz to 2.9 GHz frequencies without tuning. WiMAX model covers 2.3-3.8 GHz frequencies.
  • 3 dB or 5 dB models available for most frequency ranges
  • Antenna is ready to install; no rod cutting is required (unless otherwise noted)
  • Designed to mate with all 1-1/8”-18 thread mounts, including 3/4” mounts
  • Spring-loaded gold plated contact pin

Specifications

SKU MAX9053
Manufacturer Part Number MAX9053
Manufacturer PCTEL
Antenna Category 900 MHz
Working Frequency 896-940 MHz
Gain 3 dB
Antenna Style Base Coil Antennas
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohm
Max Input Power (W) 100
VSWR: < X: 1 < 1.5:1
Material ABS
Operating Temp (celsius) -40°C to +85°C
Color Chrome
Vehicular Yes
Ground Plane Required No
Product Condition New
