Laird MAF94301: Cellular Heptaband Antenna with RPSMA-Male for GSM+UMTS/3G, GPS, AWS, WIFI, WLAN & WISP

  • $12.90
    Unit price per

MAF94301


200 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $11.75
25 $10.57
100 $9.61
250 $8.81
500 $8.01
1000 $7.10
Lead time for qty above 200:  Ships in 8-10 Weeks

Shipping calculated at checkout.

Laird MAF94301: Cellular Heptaband Antenna with RPSMA-Male for GSM+UMTS/3G, GPS, AWS, WIFI, WLAN & WISP

More InfoDocumentsSpecifications Reviews

Laird Technologies MAF94301 Heptaband portable wireless antenna with RPSMA provides excellent radio transmission characteristics while offering the ultra flexibility of seven bands in one profile. With operating frequencies of 824 - 894 MHz, 880 - 960 MHz, 1575 MHz, 1710 - 1880MHz, 1850 - 1990 MHz, 1920 - 2170 MHz, and 2400 - 2500 MHz, the antenna is the ideal choice when multiple bandwidths are required in various regional and global applications.



More Information

Laird Technologies Heptaband portable wireless antennas provide excellent radio transmission characteristics while offering the ultra flexibility of seven bands in one profile. With operating frequencies of 824 - 894 MHz, 880 - 960 MHz, 1575 MHz, 1710 - 1880MHz, 1850 - 1990 MHz, 1920 - 2170 MHz, and 2400 - 2500 MHz, the antenna is the ideal choice when multiple bandwidths are required in various regional and global applications.

Features:

  • Operates simultaneously in more than seven frequency bands supporting - Cellular, Quadband GSM+UMTS/3G, GPS, AWS, WIFI, WLAN, and WISP

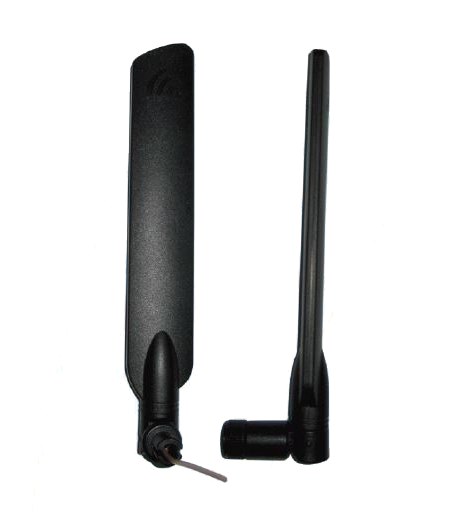

  • Blade style external antenna measures only 6.33”
  • Mounting style: RP-SMA Male



Application:

  • Wireless terminal
  • Point-of-Sale
  • Machine to machine
  • Automatic meter reading
  • Home security

Documents


Specifications

SKU MAF94301
Manufacturer Part Number MAF94301
Manufacturer Laird
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 824-894 MHz / 880-960 MHz
Gain 1 - 3 dBi
Working Frequency 2 1575 MHz
Working Frequency 3 1710-1880 MHz / 1850-1990 MHz / 1920-2170 MHz
Gain 3 1 - 3 dBi
Working Frequency 4 2400-2500 MHz
Gain 4 1 - 3 dBi
Antenna Style Blade Style Antenna
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohm
Max Input Power (W) 10 W
VSWR: < X: 1 <2.5:1
Height/Length (inches) 6.3
Height/Length (mm) 161
Thickness/Diameter (inches) 0.36
Thickness/Diameter (mm) 9.3
Mount Style RP-SMA Male
Color Black
Product Condition New
