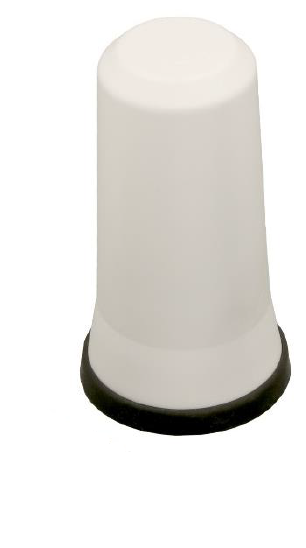

LPT600/3800NMOHFW: Low Profile 617-3800MHz, NMO High Frequency mount, Monopole

  • $32.35
    Unit price per

LPT600/3800NMOHFW


0 in stock. Subject to factory lead time
Lead time:  Ships in 10-12 Weeks

Shipping calculated at checkout.

LPT600/3800NMOHFW: Low Profile 617-3800MHz, NMO High Frequency mount, Monopole

More InfoDocumentsSpecifications Reviews

LPT600/3800NMOHFW: Low Profile 617-3800MHz, NMO High Frequency mount, Monopole

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.

*This product is subjected to a minimum order quantity of 13*



More Information

LPT600/3800NMOHFW, NMO High Frequency mount, Monopole

Features:

  • 4G / 5G LTE
  • 617-960/1710-2170/ 2300-2700/3400-3800MHz
  • Includes New Band 71 (617-698 MHz) and CBRS Bands 42 and 48 (3.4-3.7 GHz)
  • Omni radiation pattern
  • Average peak gain 3.8/5.2/5.6/5.5dBi
  • Power rating 60W •Size Dia. 40.9mm (1.61”)
  • Height 77.7mm (3.06”)
  • NMOHF Connector

Documents


Specifications

SKU LPT6003800NMOHFW
Manufacturer Part Number LPT600/3800NMOHFW
Manufacturer Pulse
Antenna Category 5G
Working Frequency 617-960 MHz
Gain 3.8 dBi
Working Frequency 2 1710-2170 MHz
Gain 2 5.2 dBi
Working Frequency 3 2300-2700 MHz
Gain 3 5.6 dBi
Working Frequency 4 3400-3800 MHz
Gain 4 5.5 dBi
Antenna Style Low Profile Antenna
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohmi
Max Input Power (W) 60 W
VSWR: < X: 1 3:01
Height/Length (inches) 3.06
Height/Length (mm) 77.7
Thickness/Diameter (inches) 1.61
Thickness/Diameter (mm) 40.9
Weight (lbs) 0.14
Weight (grams) 63
Material UV Stabilized plastic
Operating Temp (celsius) -40°to +85°C
Color White
Connector 1 NMO
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
