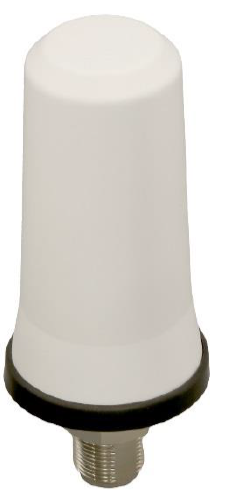

LPT600/3800DMNW: Low Profile 617-3800MHz, Direct Mount, Monopole, N-Female

  • $37.61
    Unit price per

LPT600/3800DMNW


0 in stock. Subject to factory lead time
Lead time:  Ships in 10-12 Weeks

Shipping calculated at checkout.

LPT600/3800DMNW: Low Profile 617-3800MHz, Direct Mount, Monopole, N-Female

More InfoDocumentsSpecifications Reviews

LPT600/3800DMNW: Low Profile 617-3800MHz, Direct Mount, Monopole, N-Female

*This product is subjected to a minimum order quantity of 11*



More Information

LPT600/3800DMNW, Direct mount, Monopole

Features:

  • 4G / 5G LTE •617-960/1710-2170/ 2300-2700/3400-3800MHz
  • Includes New Band 71 (617-698 MHz) and CBRS Bands 42 and 48 (3.4-3.7 GHz)
  • Omni radiation pattern •Average peak gain 3.9/5.3/5.4/4.7 dBi
  • Power rating 60W •Size Dia. 40.9mm (1.61”)
  • Height 77.7mm (3.06”)
  • N-Female

Documents


Specifications

SKU LPT6003800DMNW
Manufacturer Part Number LPT600/3800DMNW
Manufacturer Pulse
Antenna Category 5G
Working Frequency 617-960 MHz
Gain 3.9 dBi
Working Frequency 2 1710-2170 MHz
Gain 2 5.3 dBi
Working Frequency 3 2300-2700 MHz
Gain 3 5.4 dBi
Working Frequency 4 3400-3800 MHz
Gain 4 4.7 dBi
Antenna Style Low Profile Antenna
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohmi
Max Input Power (W) 60 W
VSWR: < X: 1 3:1/2.5:1
Height/Length (inches) 3.12
Height/Length (mm) 79.2
Thickness/Diameter (inches) 1.61
Thickness/Diameter (mm) 40.9
Weight (lbs) 0.18
Weight (grams) 80
Material UV Stabilized plastic
Operating Temp (celsius) -40°to +85°C
Color White
Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
