Log Periodic Yagi Antenna for 5G/LTE, 617-7125 MHz | RYE-600/71-8-SNF
RYE-600/71-8-SNF
Shipping calculated at checkout.
Log Periodic Yagi Antenna for 5G/LTE, 617-7125 MHz | RYE-600/71-8-SNF

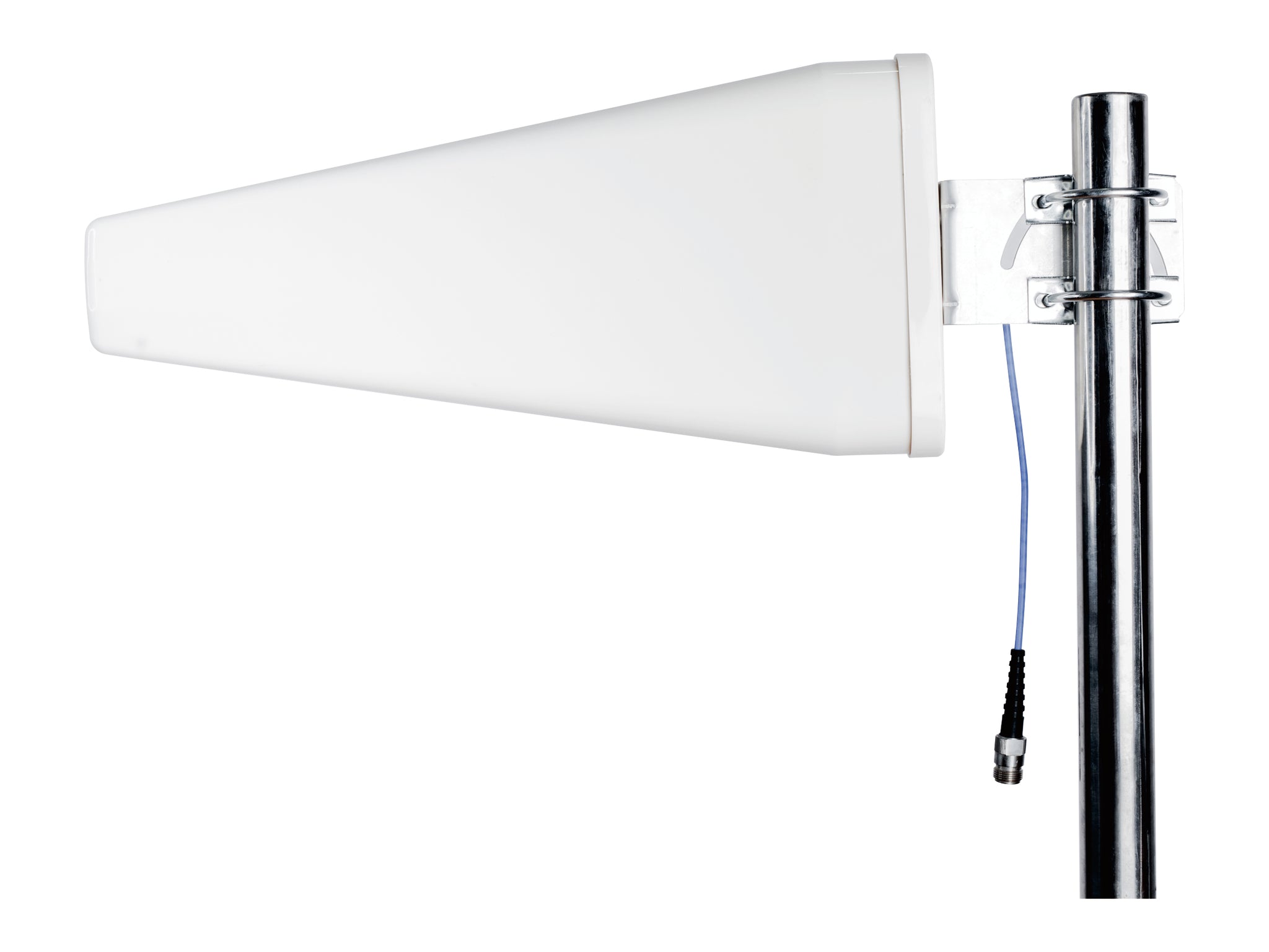

More InfoSpecifications ReviewsLog Periodic Yagi, 617-7125 MHz with Direct N-Female Connector
More Information
Log Periodic yagi, for 5G/LTE, Band 71. Wideband Frequency Range, 617-6000 MHz, with N Female Connector. Hardware included
We Also Recommend
PT195-010-SNM-SSM
PT195-010-SNM-SSM: 10 Feet 195 Cable Assembly with N-Male and SMA-Male Connectors
$37.41
$37.41
View Details
PT240-030-SNM-SSM
240 Type Low Loss Coax Cable - 30 Feet - N Male - SMA Male
$67.54
$67.54
View Details
PT400-050-SNM-SSM
400 Type Low Loss Coax Cable - 50 Feet - N Male - SMA Male
$180.78
$180.78
View Details
RBDM-55-SS-6
2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Machine To Machine Communication. RBDM-55-SS-6
$118.80
$118.80
$110.00
$110.00
View Details
Specifications
| SKU | RYE600718SNF |
|---|---|
| Manufacturer Part Number | RYE-600/71-8-SNF |
| Manufacturer | RFMAX |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Working Frequency | 617-806 MHz |
| Gain | 7.5 dBi |
| Working Frequency 2 | 806-960 MHz |
| Gain 2 | 7.5 dBi |
| Working Frequency 3 | 1710-2700 MHz |
| Gain 3 | 9 dBi |
| Working Frequency 4 | 3300-4000 MHz |
| Gain 4 | 9 dBi |
| Working Frequency 5 | 4900-6000 MHz |
| Gain 5 | 7 dBi |
| Antenna Style | Yagi Antenna |
| Polarity | Vertical |
| SISO or MIMO | SISO |
| Directional or Omni | Directional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 50W |
| VSWR: < X: 1 | 1.8:1 |
| Height/Length (inches) | 17.32 |
| Height/Length (mm) | 440 |
| Width (inches) | 8.27 |
| Width (mm) | 210 |
| Weight (lbs) | 1.2 |
| Material | ABS, UV Protected |
| Operating Temp (celsius) | -40 to + 55 |
| Color | White |
| Includes | Mounting Hardware Included |
| IP Rating | IP54 |
| OK for Outdoor Use | Outdoor |
| Ground Plane Required | No |
| Product Condition | New |
