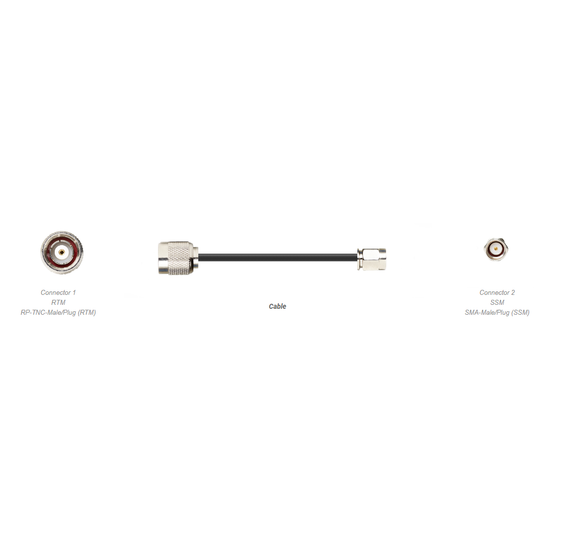

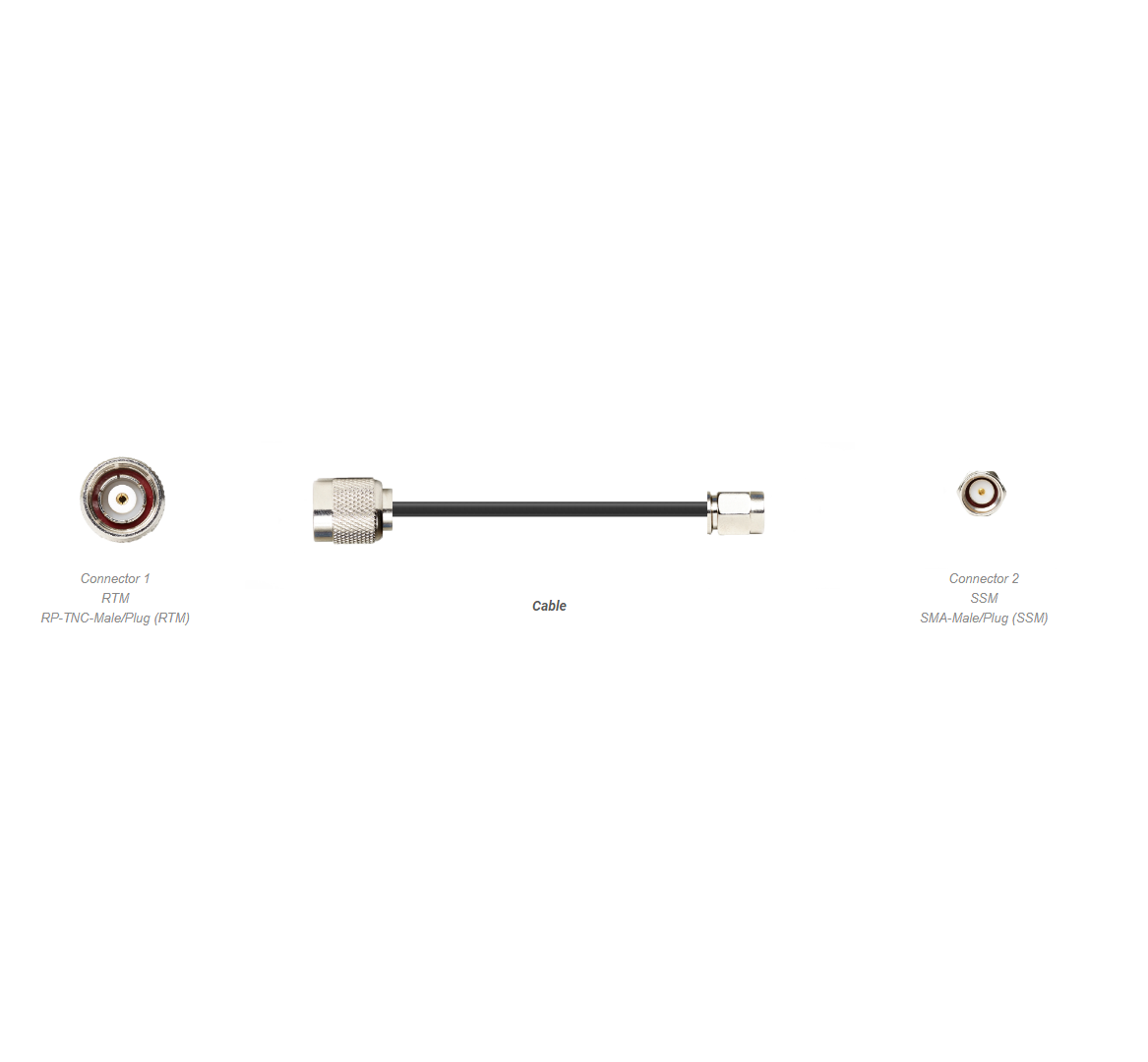

LMR195 Type equivalent Cable - Reverse Polarity TNC Male to Standard SMA-Male - 14 Foot
PT195-014-RTM-SSM
Shipping calculated at checkout.
LMR195 Type equivalent Cable - Reverse Polarity TNC Male to Standard SMA-Male - 14 Foot
More InfoSpecifications Reviews
These cable assemblies are made in the USA of LMR-195 equivalent type, high quality solid center core coaxial cable. They provide low-loss and higher flexibility and are suitable for many applications including RFID, WLAN and M2M with excellent handling characteristics, improved shielding and low attenuation. Each cable is terminated with Reverse Polarity TNC Male and Standard SMA-Male connectors and include heat shrink on both connections.
More Information
LMR-195 type braided coaxial cable provides higher flexibility and is suitable for many applications, with excellent handling characteristics, improved shielding and low signal loss. Cable is approximately 0.2 inches diameter, with a solid copper center conductor, 100% braid / foil shielding.
- Attenuation @ 900MHz: 11.10 dB per 100’ (.110 dB per foot).
- Reverse Polarity TNC Male to Standard SMA-Male Connectors
Specifications
| SKU | PT195014RTMSSM |
|---|---|
| Manufacturer Part Number | PT195-014-RTM-SSM |
| Manufacturer | RFMAX |
| Cable Type | LMR195 |
| Color | Black |
| Cable Length | 14 Feet |
| Cable Connector 1 | RP TNC-Male |
| Cable Connector 2 | SMA-Male |
| Product Condition | New |
