Need help choosing an antenna? Need to design a custom antenna? WE CAN HELP:

YS2203: 220-250 MHz, 3 element, 9 dBi, Aluminum Yagi with Fixed N-Female Connector

  • $118.89
    Unit price per


1 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $110.16
25 $105.48
100 $100.53
250 $99.21
500 $98.54
Lead time for qty above 1:  Ships in 4-6 Weeks

Shipping calculated at checkout.

YS2203: 220-250 MHz, 3 element, 9 dBi, Aluminum Yagi with Fixed N-Female Connector

More InfoSpecifications Reviews

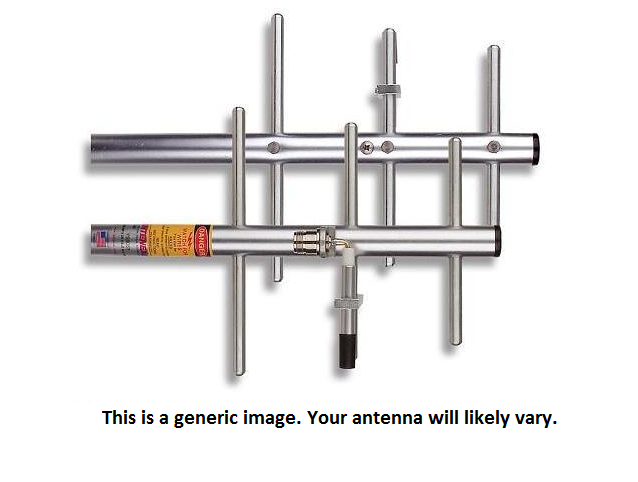

The YS2203 from Laird (formerly Antenex) is a heavy duty, directional Yagi antenna with 3 elements, operating at 220-250 MHz, providing 9 dBi of linear gain.

More Information

Laird – Antenex Aluminum Yagi Antennas Are An Economical Choice for High Performance And Long Service Life. These Yagis Are Gamma Matched for Best Performance. Every antenna Is Covered By A Five-Year Factory Warranty.

The YS2203 from Laird (formerly Antenex) is made from heavy duty aluminum, terminated with a fixed N-Female connector, and includes a basic mounting bracket kit.


  • Frequency: 220-250 MHz
  • Number of elements: 3
  • Gain: 9 dBi
  • Fixed N-Female Connector
  • Die Cast Mounting Bracket Included
  • Five Year Factory Warranty

*Please note: Yagi antennas are able to be mounted in either the vertical or horizontal plane. The waves leave Yagi antennas in the same plane as the elements. If the elements are up and down, the polarity (or polarization) is vertical. It is necessary to have antennas at both ends of the communications link of the same polarity. Mobile systems traditionally have all antennas vertically polarized. For dedicated Yagi-to-Yagi links either polarization may be selected but be sure to choose the same for both ends of the path.


SKU YS2203
Manufacturer Part Number YS2203
Manufacturer Laird
Antenna Category VHF-2 (220-380 MHz)
Working Frequency 220-250 MHz
Gain 9 dBi
Antenna Style Yagi Antenna
Polarity Linear
Bands Single
Directional or Omni Directional
Impedance 50 Ohm
VSWR: < X: 1 1.5:1
Front/Back Ratio (Db) 17
Horizontal/Azimuth Beamwidth 72
Vertical/Elevation Beamwidth 57
No Of Elements 3
Height/Length (inches) 41.5
Height/Length (mm) 1054.1
Weight (lbs) 3
Weight (grams) 1360.8
Operating Temp (celsius) (-30 to 70) C
Color Chrome
Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
