Y4506: 450-470 MHz, 6 element, 12 dBi Fully Welded, Gold Anodized Yagis with Fixed N-Female Connector

  • $219.00
    Unit price per


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $178.30
25 $170.97
100 $167.53
250 $165.31
500 $164.22
Lead time:  Ships in 4-6 Weeks

Shipping calculated at checkout.

Y4506: 450-470 MHz, 6 element, 12 dBi Fully Welded, Gold Anodized Yagis with Fixed N-Female Connector

More InfoSpecifications Reviews

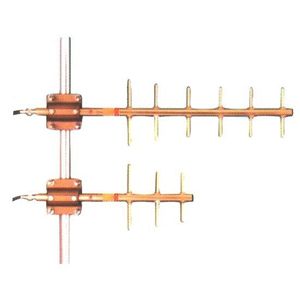

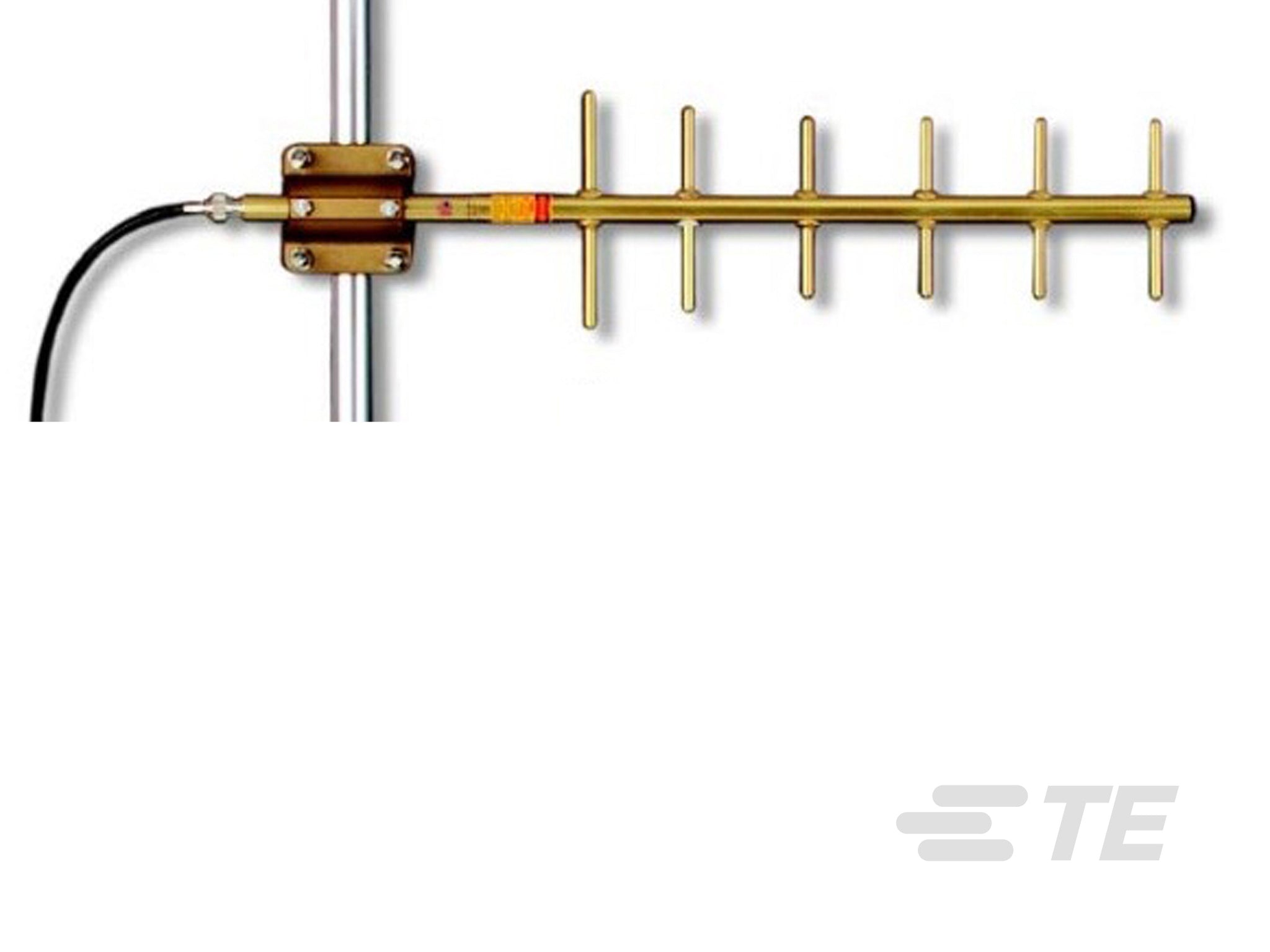

The Y4506 from Laird (formerly Anexter) is heavy duty, fully welded, gold anodized directional Yagi antenna with 6 elements, operating at 450-470 MHz, providing 12 dBi of linear gain.

More Information

Laird – Antenex Fully Welded, Gold Anodized Yagi Antennas Are Simply The Best Choice for High Performance And Long Service Life. These Yagis Are Made With a 7/8 Inch Aluminum Boom To hold up to the elements.  Every antenna Is Covered By A Five-Year Factory Warranty.

The Y4506  from Laird (formerly Antenex) is made from heavy duty aluminum, then gold anodized and have their elements fully welded to the boom.  Each unit is terminated with a fixed N-Female connector, and includes a basic mounting bracket kit.


  • Frequency: 450-470 MHz
  • Number of elements: 6
  • Gain: 12 dBi
  • Length: 44 inches
  • Power Handling: 300 Watts
  • Fixed N-Female Connector
  • Die Cast Mount Bracket Included
  • Five Year Factory Warranty

*Please note: Yagi antennas are able to be mounted in either the vertical or horizontal plane. The waves leave Yagi antennas in the same plane as the elements. If the elements are up and down, the polarity (or polarization) is vertical. It is necessary to have antennas at both ends of the communications link of the same polarity. Mobile systems traditionally have all antennas vertically polarized. For dedicated Yagi-to-Yagi links either polarization may be selected but be sure to choose the same for both ends of the path.


SKU Y4506
Manufacturer Part Number Y4506
Manufacturer Laird
Antenna Category UHF (380-600 MHz)
Working Frequency 450-470 MHz
Gain 12 dBi
Antenna Style Yagi Antenna
Polarity Linear
Bands Single
Directional or Omni Directional
Impedance 50 Ohm
VSWR: < X: 1 1.5:1
Front/Back Ratio (Db) 20
Horizontal/Azimuth Beamwidth 72
Vertical/Elevation Beamwidth 57
No Of Elements 6
Height/Length (inches) 44
Height/Length (mm) 1117.6
Weight (lbs) 3
Weight (grams) 1360.8
Operating Temp (celsius) (-30 to 70) C
Color Gold
Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
