Y1505: 150-174 MHz, 5 element, 11 dBi Fully Welded, Gold Anodized Yagis with Fixed N-Female Connector

  • $342.48
    Unit price per

Y1505


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $278.05
25 $266.62
100 $261.24
250 $257.78
500 $256.08
Lead time:  Ships in 4-6 Weeks

Shipping calculated at checkout.

Y1505: 150-174 MHz, 5 element, 11 dBi Fully Welded, Gold Anodized Yagis with Fixed N-Female Connector

More InfoSpecifications Reviews

The Y1505 from Laird (formerly Anexter) is heavy duty, fully welded, gold anodized directional Yagi antenna with 5 elements, operating at 150-174 MHz, providing 11 dBi of linear gain.

***This item is subject to an MOQ of 2 pcs***



More Information

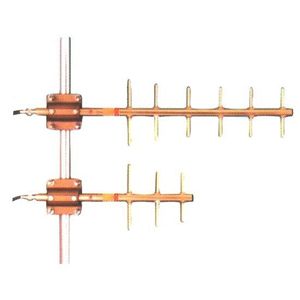

Laird – Antenex Fully Welded, Gold Anodized Yagi Antennas Are Simply The Best Choice for High Performance And Long Service Life. These Yagis Are Made With a 7/8 Inch Aluminum Boom To hold up to the elements.  Every antenna Is Covered By A Five-Year Factory Warranty.

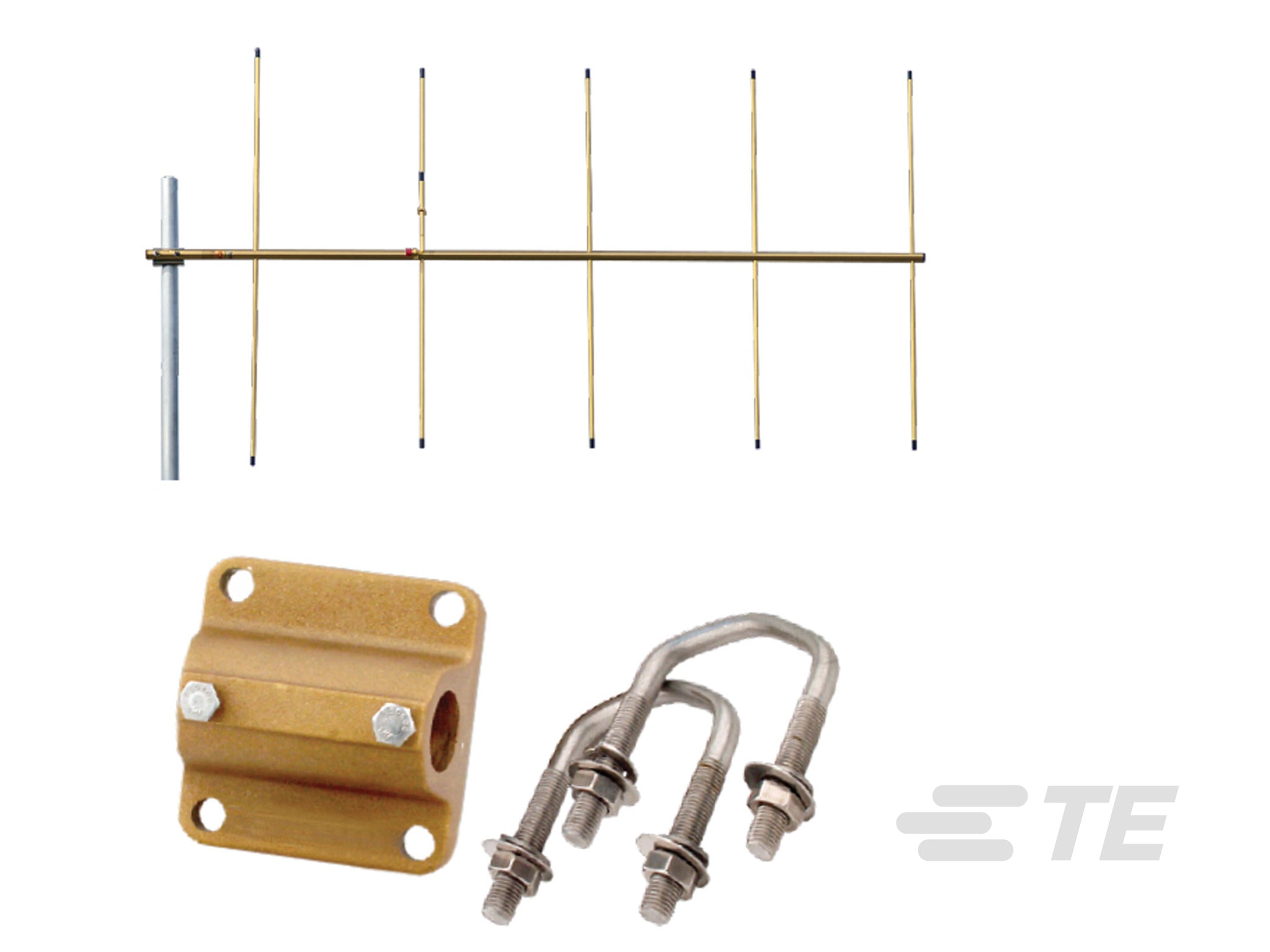

The Y1505  from Laird (formerly Antenex) is made from heavy duty aluminum, then gold anodized and have their elements fully welded to the boom.  Each unit is terminated with a fixed N-Female connector, and includes a basic mounting bracket kit.

FEATURES AND BENEFITS:

  • Frequency: 150-174 MHz
  • Number of elements: 5
  • Gain: 11 dBi
  • Length: 72 inches
  • Power Handling: 300 Watts
  • Fixed N-Female Connector
  • Die Cast Mount Bracket Included
  • Five Year Factory Warranty

*Please note: Yagi antennas are able to be mounted in either the vertical or horizontal plane. The waves leave Yagi antennas in the same plane as the elements. If the elements are up and down, the polarity (or polarization) is vertical. It is necessary to have antennas at both ends of the communications link of the same polarity. Mobile systems traditionally have all antennas vertically polarized. For dedicated Yagi-to-Yagi links either polarization may be selected but be sure to choose the same for both ends of the path.


Specifications

SKU Y1505
Manufacturer Part Number Y1505
Manufacturer Laird
Antenna Category VHF (132-220 MHz)
Working Frequency 150-174 MHz
Gain 11 dBi
Antenna Style Yagi Antenna
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Directional
Impedance 50 Ohm
VSWR: < X: 1 1.5:1
Front/Back Ratio (Db) 20
Horizontal/Azimuth Beamwidth 56
Vertical/Elevation Beamwidth 48
No Of Elements 5
Height/Length (inches) 72
Height/Length (mm) 1828.8
Weight (lbs) 5
Weight (grams) 2268
Operating Temp (celsius) (-30 to 70) C
Color Gold
Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
