LPS69273NT-61SMAM: IP67 Rated 3G/4G/LTE Cellular Disk-Puck Antenna. Permanent Mount with SMA.

  • $64.30
    Unit price per

LPS69273NT-61SMAM


28 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
25 $60.86
100 $56.39
250 $53.26
500 $50.44
Lead time for qty above 28:  Ships in 8-10 Weeks

Shipping calculated at checkout.

LPS69273NT-61SMAM: IP67 Rated 3G/4G/LTE Cellular Disk-Puck Antenna. Permanent Mount with SMA.

More InfoDocumentsSpecifications Reviews

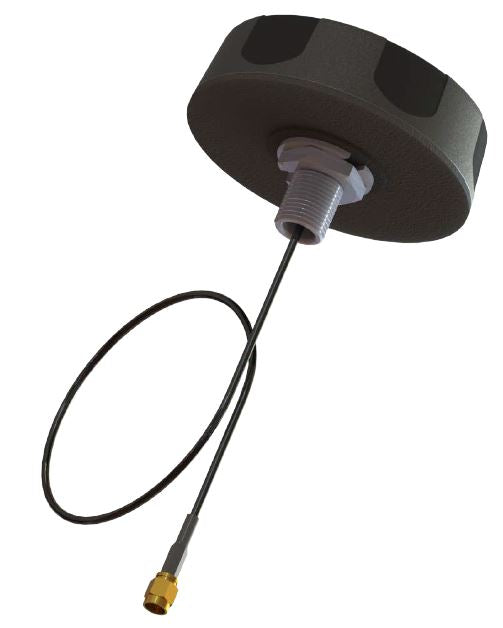

The Laird LPS69273NT-61SMAM is a multi-band cellular antenna for 3G/4G/LTE - 698-2700 Mhz. Low profile Disk-Puck type antenna mounts with a metallic threaded stud, and lock nut, and is pre-configured with a 24 inch cable & SMA male connector.


More Information

The Laird LPS69273NT-61SMAM is a multi-band cellular antenna for coverage in the 3G/4G/LTE frequencies of 698-2700 Mhz. The unit is a IP67 rated, low profile Disk-Puck type antenna for wireless M2M communication. The antenna mounts with a metallic threaded stud, and lock nut. It is pre-configured with a 24 inch cable & SMA male connector.

Specifications:

  • Frequency: 698-2700 MHz
  • Gain om metal housing: 1.1-5.9 dBi
  • VSWR: <3:1
  • Input Power: 10 Watts
  • Size: 3.5” x 1.0” ( 89 x 25 mm)
  • Weight: 0.24 lbs

Equivalent To:

  • Taoglas: G24 Ultima
  • Antenna Plus: AP-85/18
  • Mobile Mark:  SM83719001CWHT180

Documents


Specifications

SKU LPS69273NT61SMAM
Manufacturer Part Number LPS69273NT-61SMAM
Manufacturer Laird
Antenna Category 3G/4G/LTE (698-2700 MHz)
Working Frequency 698-806 MHz
Gain 2.5 dBi
Working Frequency 2 1710-1880 MHz
Gain 2 5.9 dBi
Working Frequency 3 1850-1990 MHz
Gain 3 4.8 dBi
Working Frequency 4 1910-2170 MHz
Gain 4 4.9 dBi
Working Frequency 5 2500-2700 MHz
Gain 5 4
Antenna Style Low Profile
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 10
VSWR: < X: 1 1.7:1-3.0:1
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 1
Height/Length (mm) 26
Thickness/Diameter (inches) 3.5
Thickness/Diameter (mm) 90
Weight (lbs) 0.24 lbs.
Weight (grams) 108.5 g
Material Polycarbonate
Operating Temp (celsius) -30 to +70
Mount Style Direct 3/4" hole
Color Black
Number of Cables 1
Cable Length (inches) 24
Cable Length (mm) 610
Connector 1 SMA-Male
IP Rating IP67
Vehicular Yes
Product Condition New
