PAL902010-FNF: Laird 12x12 inch, 9.6 dBic gain RFID Antenna

  • $220.00
    Unit price per

PAL902010-FNF


0 in stock. Subject to factory lead time
Lead time:  Ships in 10-12 Weeks

PAL902010-FNF: Laird 12x12 inch, 9.6 dBic gain RFID Antenna

More InfoDocumentsSpecifications Reviews

The PAL902010-FNF is an IP67 rated, 12x12 inch, hi-gain, panel antenna for UHF RFID.  This unit operates at 902-928 MHz for the FCC RFID band, and offers a maximum gain of 9.6 dBic (circular.)  Features 4 stud mounting, and fixed N-Female Connector.

*A note about Antenna Polarity:
For most RFID applications, right and left hand polarity antennas may be used interchangeably.



More Information

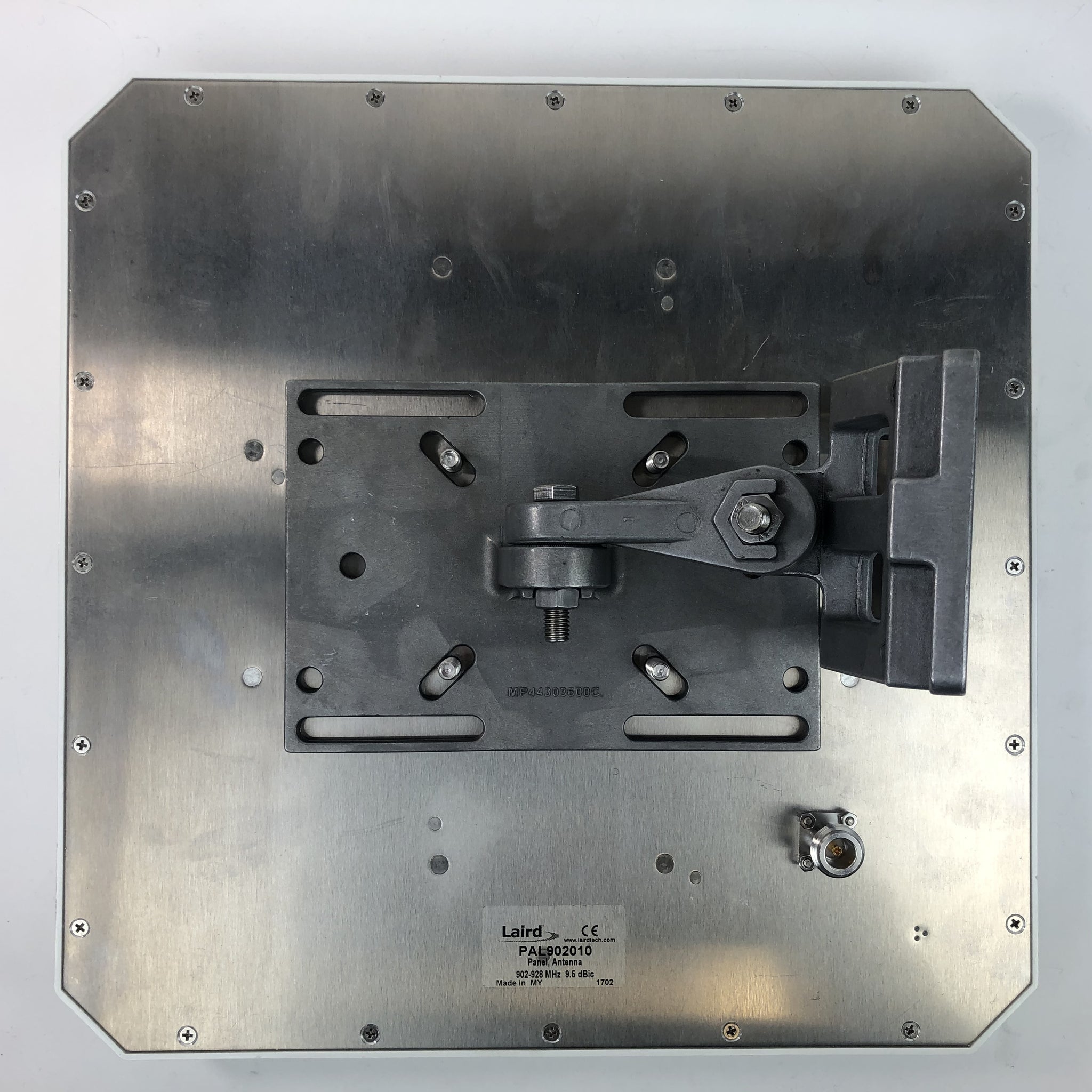

The PAL902010-FNF is a high-gain, 9.6 dBic, IP67 rated outdoor antenna for 902-928 MHz passive UHF RFID installations. It is built with a pre-installed N-Female connector through the backplate. This antenna is built in conjuction with Laird Technologies.

• Operates in the 902-928 MHz - ISM (Industrial, Scientific & Medical) band.
• IP67 Compliant- Excellent reliability & durability in harsh indoor & outdoor operating conditions.
• Configured with an integrated fixed Female N Connector.
• Low profile and thin form factor enables maximum installation flexibility.
• Excellent for applications with large reading distances.
• Low axial ratio and circular polarization increases reading accuracy when tag alignment varies.
• Industry leading FIVE YEAR WARRANTY


Documents

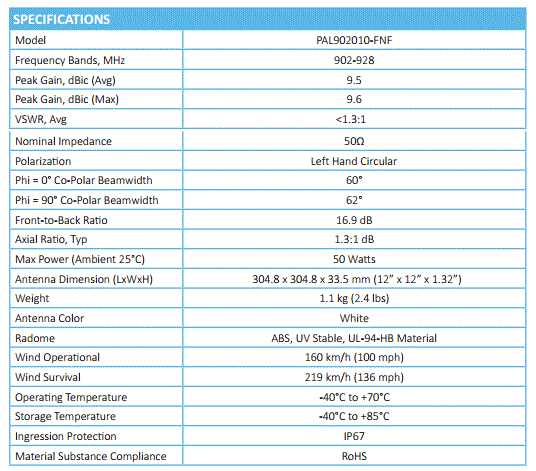

Specifications

SKU PAL902010FNF
Manufacturer Part Number PAL902010-FNF
Manufacturer Laird
Antenna Category RFID (865-928 MHz)
IP Rating 67
Polarity Left Hand Circular
Gain 9.6

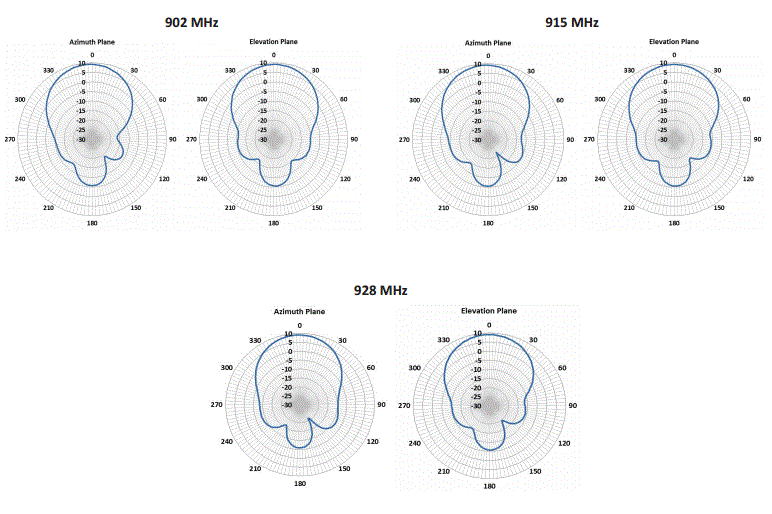

Horizontal/Azimuth Beamwidth 60
Vertical/Elevation Beamwidth 62
Connector Type Connector - Rear
Connector 1 N-Female

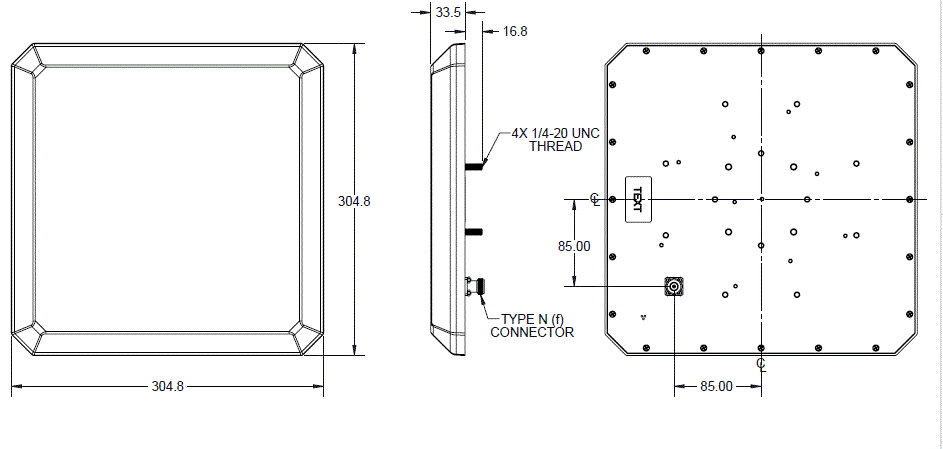

Height/Length (inches) 12
Height/Length (mm) 305
Operating Temp (celsius) -40 to +70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 34
Width (inches) 12
Width (mm) 305
Weight (lbs) 2.5
Weight (grams) 1100
Material ABS Housing
Color White
Mount Style 4 x Threaded Stud 1/4-20
Includes 4 each: flast washers, lock washers & hex nuts
Product Condition New
