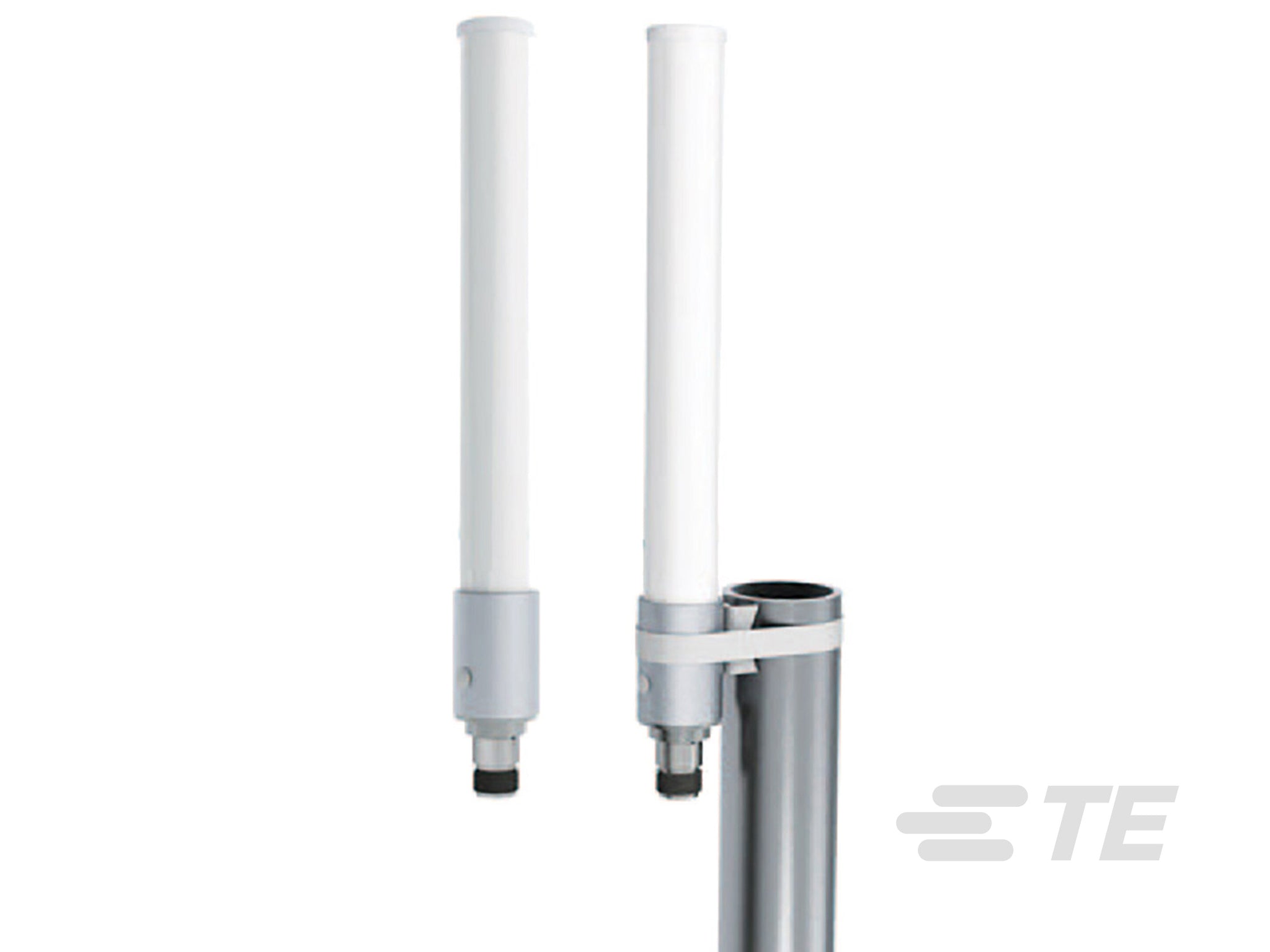

OC69271-FNM: Laird Outdoor Rated 3G/4G/LTE Omnidirectional Antenna - N-Male Connector

  • $64.04
    Unit price per

OC69271-FNM


30 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $59.69
25 $55.91
100 $51.78
250 $48.90
500 $46.35
Lead time for qty above 30:  Ships in 8-10 Weeks

Shipping calculated at checkout.

OC69271-FNM: Laird Outdoor Rated 3G/4G/LTE Omnidirectional Antenna - N-Male Connector

More InfoDocumentsSpecifications Reviews

Outdoor Rated 3G/4G/LTE Omnidirectional/Al Stick Antenna With Fixed N-Male Connector increases the performance of today's most popular cellular modems & gateways from Sierra Wireless and Cradlepoint.


More Information

The OC69271-FNM is an Outdoor Rated 3G/4G/LTE Omnidirectional Stick Antenna With Fixed N-Male Connector. This is equivalent to Cisco part # OC69271-CS1

Documents


Specifications

SKU OC69271FNM
Manufacturer Part Number OC69271-FNM
Manufacturer Laird
Antenna Category 3G/4G/LTE (698-2700 MHz)
Working Frequency 698-960
Gain 1.5
Working Frequency 2 1710-2700 MHz
Gain 2 3.5
Antenna Style Omnidirectional Stick Antenna
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50
Max Input Power (W) 10
VSWR: < X: 1 2
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 75
Height/Length (inches) 9.8
Height/Length (mm) 248
Thickness/Diameter (inches) 1
Thickness/Diameter (mm) 24.5
Weight (lbs) 0.35
Weight (grams) 156
Material Polycarbonate
Operating Temp (celsius) -30 TO +70
Mount Style Mast Or Wall
Color White
Connector Type Connector - Bottom
Connector 1 N-Male
Includes Mast Mount Kit Included
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Product Condition New
