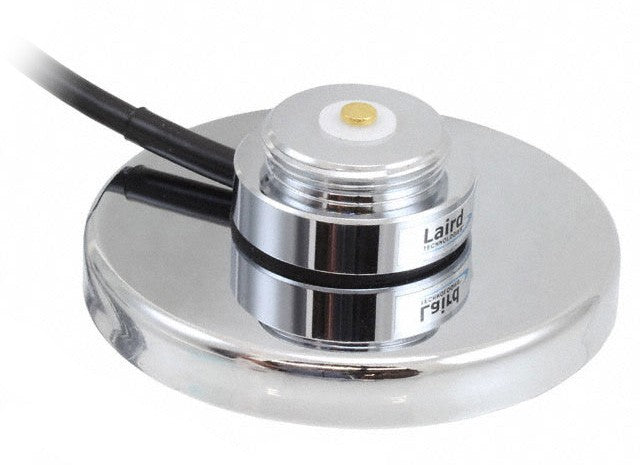

G8MI: Magnetic NMO Mount with 12 Ft. RG-58A/U Cable & Mini UHF Crimp Installed Connector
G8MI
Shipping calculated at checkout.
G8MI: Magnetic NMO Mount with 12 Ft. RG-58A/U Cable & Mini UHF Crimp Installed Connector
More InfoDocumentsSpecifications ReviewsThis Laird Magnetic NMO Mount is optimized for vehicular roof mounting of an NMO type antenna. Typically used with VHF or UHF antennas, the G8MI includes a 12 Ft. RG-58A/U Cable & Mini UHF Crimp Installed.
Upgrade to HEAVY DUTY mag-mounts with pull-tab and strain relief.
If this is not the NMO Mount you are looking for, please click here to find all NMO mounts we carry or email customerservice@arcadianinc.com to get to one of our customer service team member.
More Information
FEATURES
- Magnetic NMO Mount
- 12 Ft. RG-58A/U Cable

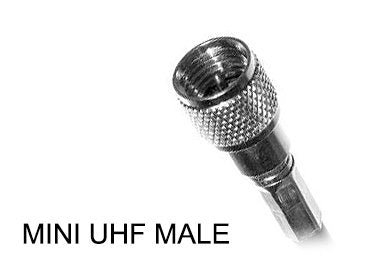

- Mini UHF Crimp Installed Connector Included
- Originally designed by Antenex
- 5 Year Factory Warranty
Cable Type | Attenuation (dB/100 ft) | ||
150 MHZ | 450 MHZ | 900 MHZ | |
RG-58/U | 5.40 | 10.20 | 16.10 |
RG-58A/U | 6.20 | 12.50 | 20.00 |
RG8X | 3.60 | 6.80 | 10.70 |
Solid Teflon Cable | 4.80 | 9.00 | 13.50 |
Documents
Specifications
SKU | G8MI |
---|---|
Manufacturer Part Number | G8MI |
Manufacturer | Laird |
NMO Mount Type | Magnetic NMO Mount |
Mount Style | Magnetic NMO Mount |
Connector 1 | Mini UHF Male/ Mini-PL259/ MPL Installed |
Cable Length (Mounts) | 12 Feet |
Cable Type | RG-58A/U |
Cable Length (inches) | 144 |
Cable Length (mm) | 43891.2 |
Thickness/Diameter (inches) | 3.2 |
Thickness/Diameter (mm) | 81.28 |
Weight (lbs) | 1 |
Weight (grams) | 454.55 |
Color | Chrome |
Connector Type | Connector - Rear |
Includes | Pre-Installed Connector |
Vehicular | Yes |
OK for Outdoor Use | Yes |
Product Condition | New |
