DCE9028PRFSMF: 10x10x4 inch Die Cast Aluminum Enclosure with Integrated RHCP RFID Antenna - FCC

  • $326.55
    Unit price per

DCE9028PRFSMF


0 in stock. Subject to factory lead time
Lead time:  Ships in 10-12 Weeks

Shipping calculated at checkout.

DCE9028PRFSMF: 10x10x4 inch Die Cast Aluminum Enclosure with Integrated RHCP RFID Antenna - FCC

More InfoSpecifications Reviews

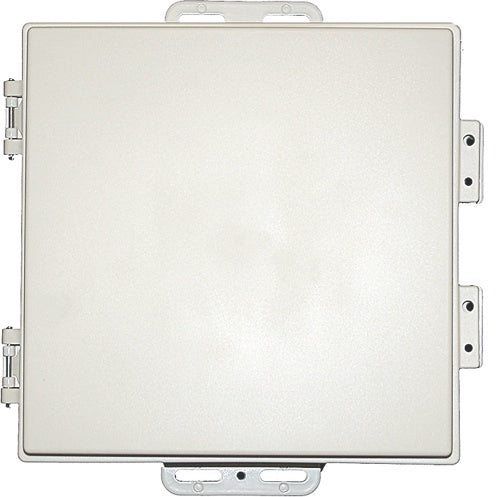

The DCE9028PRFSMF is an IP67 outdoor rated 10x10x4 inch die-cast aluminum RFID reader enclosures with an integrated 10x10 inch Right Hand Circularly Polarized RFID Antenna lid. The unit is large enough to fit an Impinj R700 or Mototola Zebra FX7500 inside, and the integrated 902-928 Mhz antenna offers 9 dBic gain. The antenna has a fixed SMA-Female Connector which is found inside the lid.


More Information


Specifications

SKU DCE9028PRFSMF
Manufacturer Laird
Working Frequency 902-928 MHz
Antenna Category RFID (865-928 MHz)
IP Rating 67
Polarity Circular
Gain 9
Horizontal/Azimuth Beamwidth 70
Vertical/Elevation Beamwidth 70
Connector Type Connector - Inside
Connector 1 SMA-Female
Height/Length (inches) 10
Height/Length (mm) 318
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 3.9
Thickness/Diameter (mm) 99
Width (inches) 10.4
Width (mm) 264
Weight (lbs) 5.3
Weight (grams) 2400
Material Aluminum

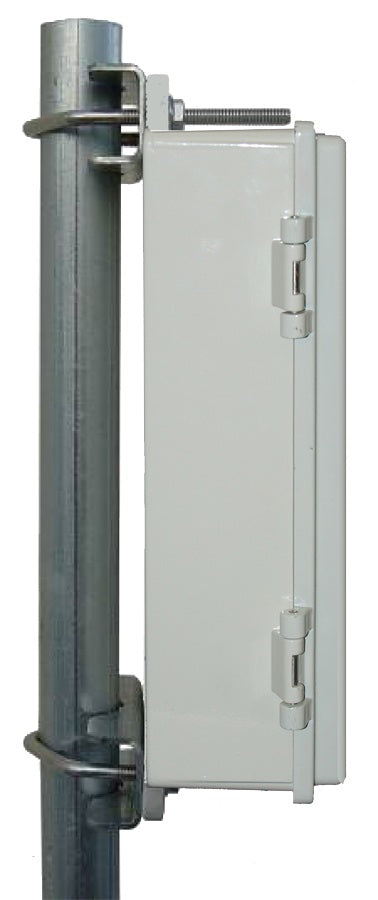

Includes Wall / Mast Mount Kit
Product Condition New
