PC804SMM96: 806-902 MHz, 4 element, 6 dBi welded, weatherproof Yagis with Pigtail cable & SMA-Male Connector

  • $96.49
    Unit price per


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $90.67
25 $86.71
100 $83.09
250 $79.23
500 $78.72
Lead time:  Ships in 10-12 Weeks

Shipping calculated at checkout.

PC804SMM96: 806-902 MHz, 4 element, 6 dBi welded, weatherproof Yagis with Pigtail cable & SMA-Male Connector

More InfoDocumentsSpecifications Reviews

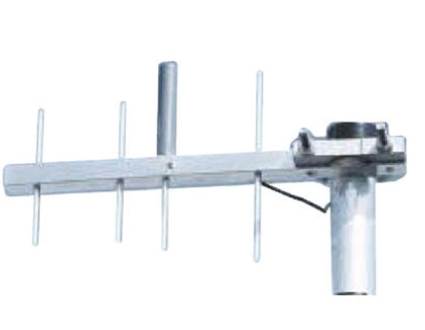

The PC804SMM96 (formerly Cushcraft) is heavy duty, fully welded, directional Yagi antenna with 4 elements, operating at 806-902 MHz, providing 6 dBi of linear gain.

Please note: This item has a minimum order qty of 6 pcs.

More Information

Cushcraft  Fully Welded, Outdoor Rated Yagi Antennas Are Designed To hold up to the elements.  Every antenna Is Covered By A Five-Year Factory Warranty.

The PC804SMM96 (formerly Cushcraft) is a heavy duty, all-welded, directional Yagi antenna.  All of the PC Yagis, have their elements fully welded to the boom. These welds are on the inside of the boom to eliminate noise and enhance electrical performance.  Complete weatherability is ensured by enclosing the feed system in a potted PVC radome that will stand up to your most demanding requirements. The pigtail feed will withstand a 50 pound pull, and makes connector weatherproofing simple. There are no moveable components, so you never have to worry about adjustments or loose parts. All hardware is stainless steel for long life.


  • Frequency: 806-902 MHz
  • Number of elements: 4
  • Gain: 6 dBi
  • Length: 13 inches
  • Power Handling: 200 Watts
  • Five Year Factory Warranty

*Please note: Yagi antennas are able to be mounted in either the vertical or horizontal plane. The waves leave Yagi antennas in the same plane as the elements. If the elements are up and down, the polarity (or polarization) is vertical. It is necessary to have antennas at both ends of the communications link of the same polarity. Mobile systems traditionally have all antennas vertically polarized. For dedicated Yagi-to-Yagi links either polarization may be selected but be sure to choose the same for both ends of the path.



Manufacturer Part Number PC804SMM96
Manufacturer Laird
Antenna Category 700/800 MHz
Working Frequency 806-902 MHz
Gain 6 dBi
Antenna Style Yagi Antenna
Polarity Linear
Bands Single
Directional or Omni Directional
Impedance 50 Ohm
VSWR: < X: 1 1.5:1
Front/Back Ratio (Db) 15
No Of Elements 4
Height/Length (inches) 13
Height/Length (mm) 330.2
Weight (lbs) 1.1
Weight (grams) 499
Operating Temp (celsius) (-30 to 70) C
Color Chrome
Cable Length (inches) 19
Cable Length (mm) 482.6
Connector 1 SMA-Male
IP Rating IP67
OK for Outdoor Use Yes
Product Condition New
