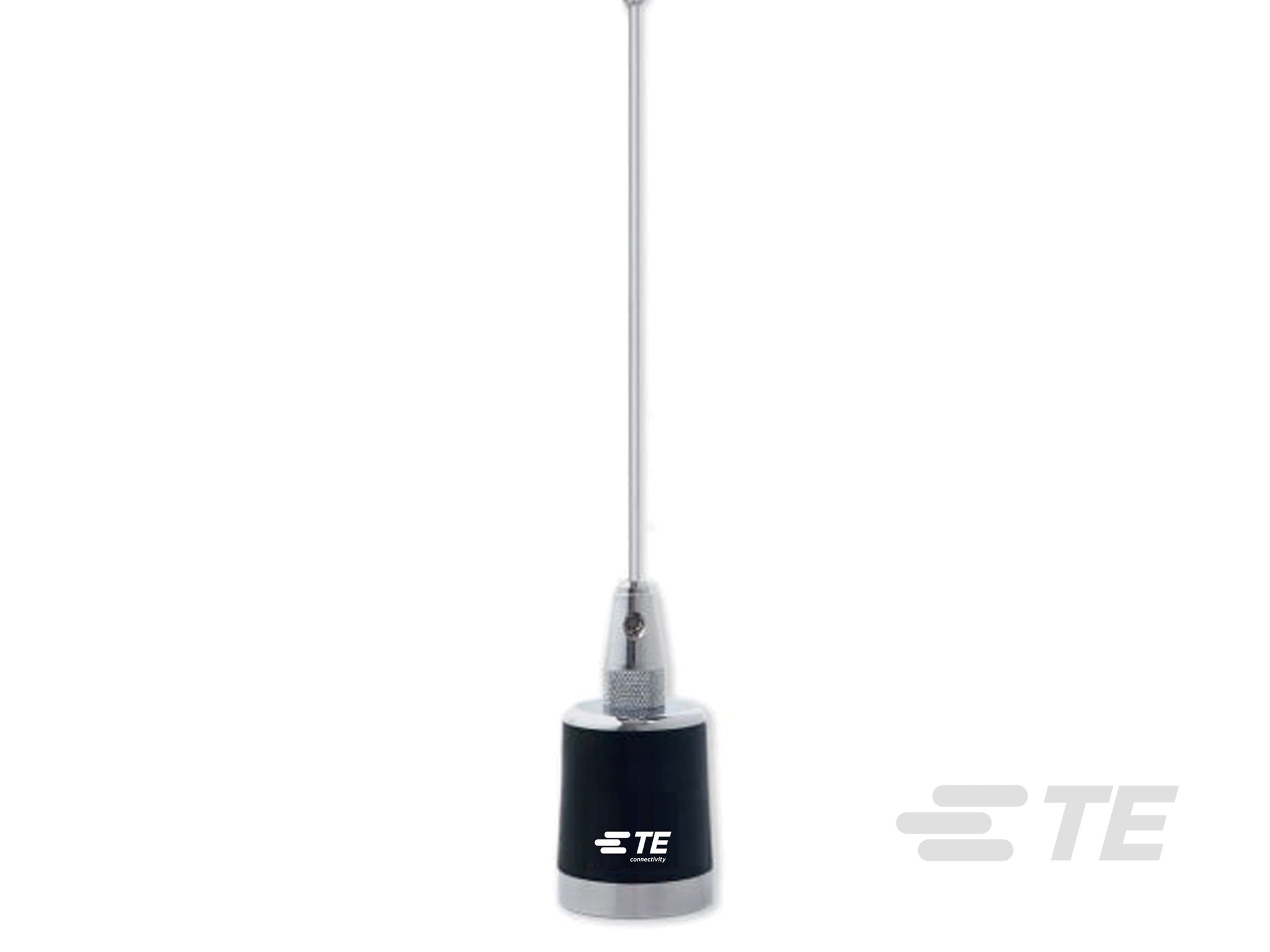

B4502N UHF Whip Antenna with Chrome and Black NMO Base - 450-470 MHz

  • $26.65
    Unit price per


57 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $24.71
25 $22.65
100 $21.24
250 $19.99
500 $18.62
Factory lead time:  Ships in 6-8 Weeks

B4502N UHF Whip Antenna with Chrome and Black NMO Base - 450-470 MHz

More InfoDocumentsSpecifications Reviews

The Laird 15 Inch UHF Whip Antenna features an elastomer spring that provides increased flexibility, better shape retention and eliminates electronic & road noise when compared to stainless steel springs.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.

More Information

The Laird mobile coil antenna with an elastomer spring provides increased flexibility, better shape retention, and eliminates electronic noise & road noise compared to stainless steel springs. The mobile coil antennas will continue to maintain all of the features that make them unique, such as stainless steel whips, housings constructed with ABS material injection molded around a solid brass insert, and gold plated push pin contacts. Together, the mobile coil antenna / elastomer spring make Laird Technologies the obvious choice for quality and long lasting value for demanding mobile radio communications.



SKU B4502N
Manufacturer Part Number B4502N
Manufacturer Laird
Product Condition New
Antenna Style Whip
Antenna Style Whip
Antenna Category UHF (380-600 MHz)
Polarity Linear
Bands Single
Directional or Omni Omnidirectional
Frequency 1 450-470 MHz
Gain 1 2.4
Impedance 50
Max Input Power (W) 200
VSWR: < X: 1 2
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 70
Height/Length (inches) 15
Height/Length (mm) 381
Thickness/Diameter (inches) 1.44
Thickness/Diameter (mm) 37
Material ABS
Mount Style Screw On
Mount Pattern 3/4 Inch NMO
Color Chrome
Connector Type Connector - Bottom
Cable Type LMR195
Connector 1 NMO
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
