B1322WS: 132-174 MHz Mobile Base Coil NMO Mount Antenna With Spring- Metalic Ground Plane Required

  • $101.31
    Unit price per

B1322WS


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
25 $96.85
100 $92.75
250 $88.40
500 $87.22
Lead time:  Ships in 6-8 Weeks

Shipping calculated at checkout.

B1322WS: 132-174 MHz Mobile Base Coil NMO Mount Antenna With Spring- Metalic Ground Plane Required

More InfoDocumentsSpecifications Reviews

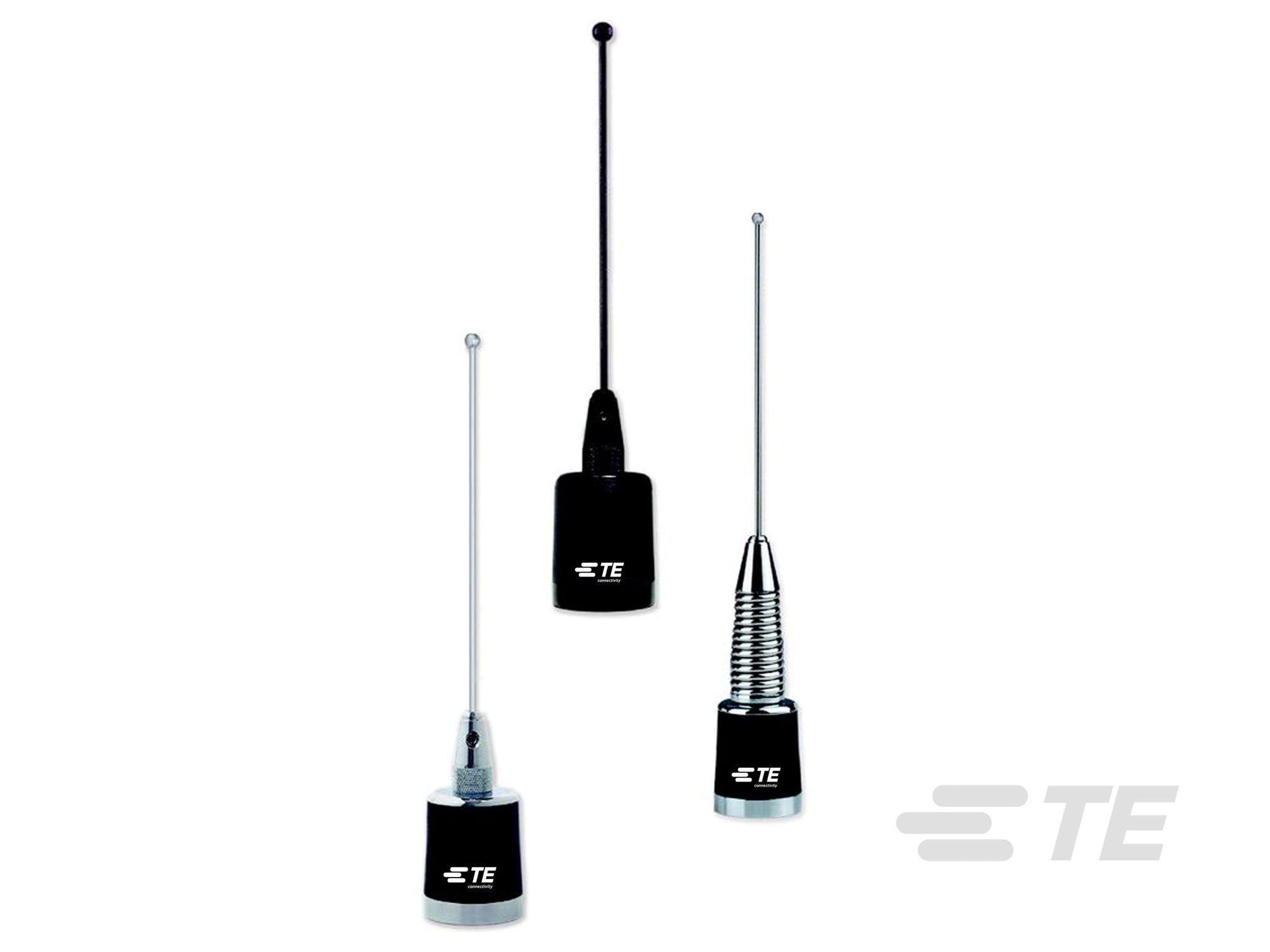

The Laird / Antenex B1322WS is a 40 inch long, Chrome base coil, omnidirectional whip antenna for operation in the 132-174 MHz VHF band, with NMO base and spring. Metal ground plane required.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.

***This item is subject to an MOQ of 6 pcs***



More Information

The Laird / Antenex B1322WS is a 40 inch long, Chrome, base loaded mobile VHF whip antenna with NMO base and spring. This antenna does require a metal ground plane. It is omnidirectional and offers 2 dBi gain and accepts up to 100-200 watts max power and operates in the 132-174 MHz range.

Laird Technology’s ongoing commitment to refinement in mechanical and electrical design has resulted in the most technically advanced mobile load coil antennas on the market. Exclusive features such as stainless steel whips, housings constructed with ABS material injected molded around a solid brass insert, and gold plated push pin contacts make Laird Technologies the obvious choice for quality and long lasting value for demanding mobile radio communications.

FEATURES:

  • Frequency Range: 132-174 MHz
  • Gain: 2 dBi
  • Length: 40 inches
  • 100% tested on a network analyzer
  • FIVE YEAR FACTORY WARRANTY

Documents


Specifications

SKU B1322WS
Manufacturer Part Number B1322WS
Manufacturer Laird
Antenna Category VHF (132-220 MHz)
Working Frequency 132-174 MHz
Gain 2 dBi
Antenna Style Base Coil Antennas
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 2.0:1
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 160
Spring Loaded Yes
Height/Length (inches) 40
Height/Length (mm) 1016
Thickness/Diameter (inches) 1.375
Thickness/Diameter (mm) 34.93
Operating Temp (celsius) (-45 to 85)
Color Chrome
Connector Type Connector - Bottom
Connector 1 NMO
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
