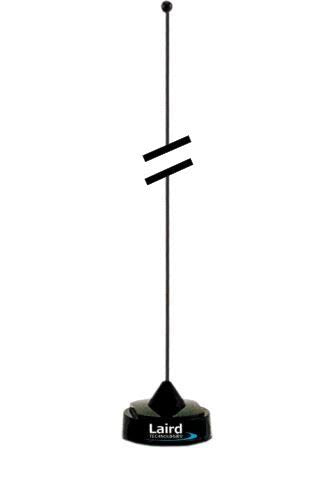

QWFTB120: 118-512 MHz Black Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.
QWFTB120
QWFTB120: 118-512 MHz Black Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.
More InfoDocumentsSpecifications ReviewsThe TE Connectivity/Antenex QWFTB120 is a(n) 24 inch long, stainless steel quarter wave omnidirectional whip antenna with black finish for operation in the 118-512 MHz frequency range, with NMO base. Metal ground plane is required.
*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
More Information
The TE Connectivity / Antenex QWFTB120 is an 24 inch long, chrome, ¼ wave whip antenna with NMO base. This antenna requires a metal ground plane, is omnidirectional, offers Unity/2.15 dBi gain and accepts up to 200 watts max power and operates in the 118-512 MHz MHz range.

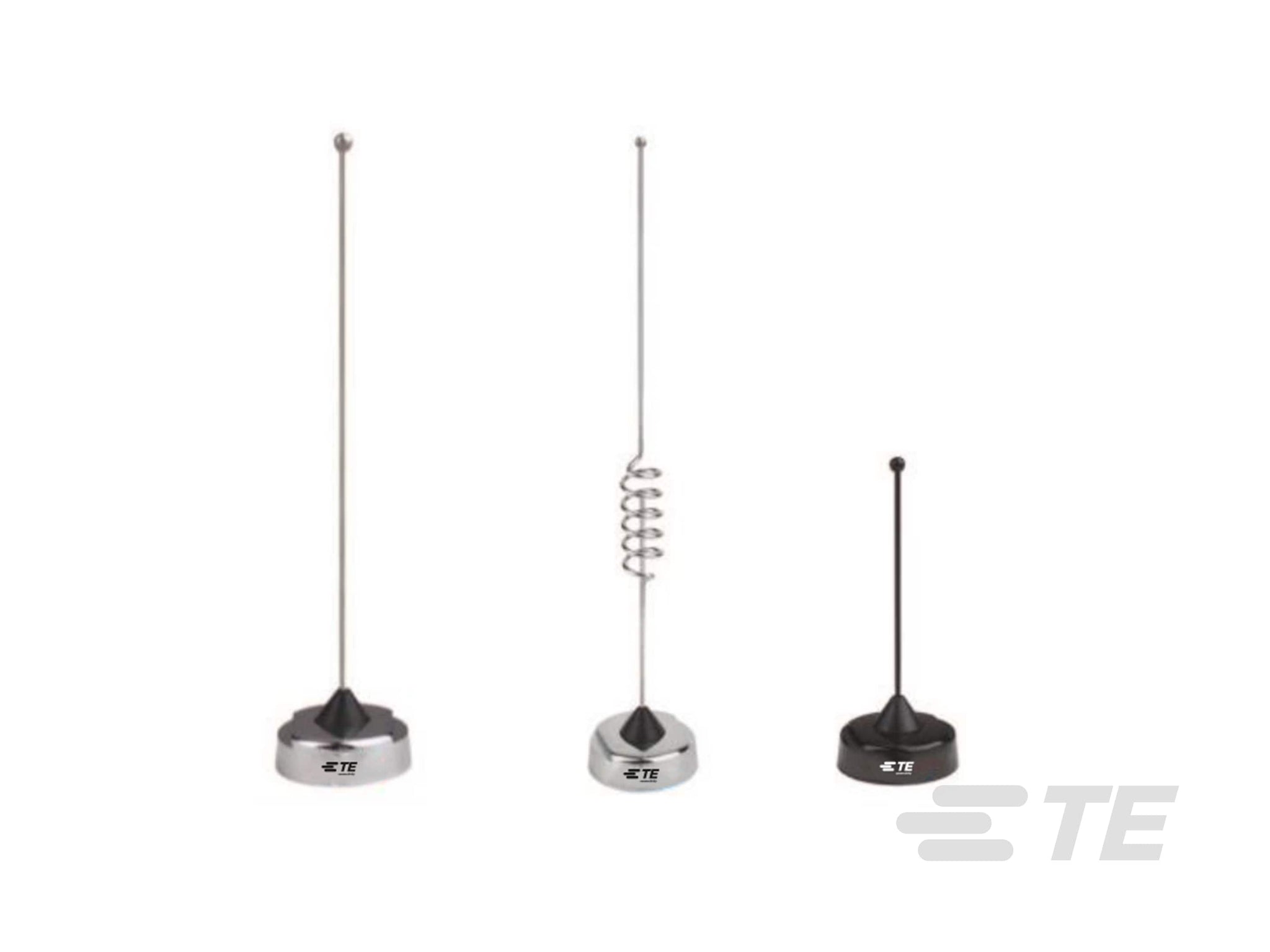

TE Connectivity Technology’s family of Quarter Wave Whip antennas all built with stainless steel materials and feature gold plated contacts for corrosion resistance and best power transfer.
FEATURES:
- Frequency Range: 118-512 MHz MHz
- Gain: Unity: Unity/2.15 dBi
- Length: 24 inches
- FIVE YEAR FACTORY WARRANTY
Documents
Specifications
| SKU | QWFTB120 |
|---|---|
| Manufacturer Part Number | QWFTB120 |
| Manufacturer | TE Connectivity |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 118-512 MHz |
| Gain | Unity/2.15 dBi |
| Antenna Style | 1/4 Wave Whip |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | 2.0:1 |
| Height/Length (inches) | 24 |
| Height/Length (mm) | 609.6 |
| Material | Stainless Steel |
| Color | Black |
| Connector 1 | NMO |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
