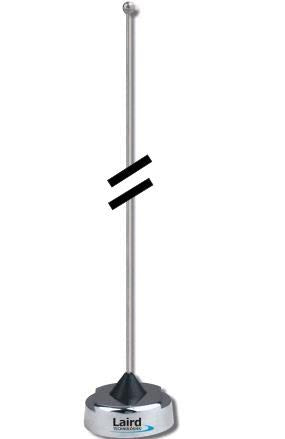

QWFT120: 118-512 MHz Chrome Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.
QWFT120-L
QWFT120: 118-512 MHz Chrome Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.
More InfoDocumentsSpecifications ReviewsThe Laird/Antenex QWFT120 is a(n) 24 inch long, stainless steel quarter wave omnidirectional whip antenna with chrome finish for operation in the 118-512 MHz frequency range, with NMO base. Metal ground plane is required.
*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
More Information
The Laird / Antenex QWFT120 is an 24 inch long, chrome, ¼ wave whip antenna with NMO base. This antenna requires a metal ground plane, is omnidirectional, offers Unity/2.15 dBi gain and accepts up to 200 watts max power and operates in the 118-512 MHz MHz range.
Laird Technology’s family of Quarter Wave Whip antennas all built with stainless steel materials and feature gold plated contacts for corrosion resistance and best power transfer.
FEATURES:
- Frequency Range: 118-512 MHz MHz
- Gain: Unity: Unity/2.15 dBi
- Length: 24 inches
- FIVE YEAR FACTORY WARRANTY
Documents
Specifications
| SKU | QWFT120 |
|---|---|
| Manufacturer Part Number | QWFT120-L |
| Manufacturer | Laird |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 118-512 MHz |
| Gain | Unity/2.15 dBi |
| Antenna Style | Quarter Wave Whip |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | 2.0:1 |
| Height/Length (inches) | 24 |
| Height/Length (mm) | 609.6 |
| Material | Stainless Steel |
| Color | Chrome |
| Connector 1 | NMO |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
