QWB470: 470-490 MHz Black Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.
QWB470: 470-490 MHz Black Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.More InfoSpecifications Reviews

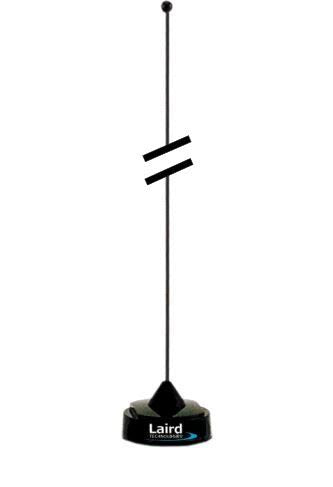

The Laird/Antenex QWB470 is a(n) 5.75 inch long, stainless steel quarter wave omnidirectional whip antenna with black finish for operation in the 470-490 MHz frequency range, with NMO base. Metal ground plane is required.
***This item is subject to an MOQ of 41 pcs***
The Laird / Antenex QWB470 is an 5.75 inch long, chrome, ¼ wave whip antenna with NMO base. This antenna requires a metal ground plane, is omnidirectional, offers Unity/2.15 dBi gain and accepts up to 200 watts max power and operates in the 470-490 MHz MHz range.
Laird Technology’s family of Quarter Wave Whip antennas all built with stainless steel materials and feature gold plated contacts for corrosion resistance and best power transfer.
- Frequency Range: 470-490 MHz MHz
- Gain: Unity: Unity/2.15 dBi
- Length: 5.75 inches
- FIVE YEAR FACTORY WARRANTY
|Manufacturer Part Number||QWB470|
|Antenna Category||UHF (380-600 MHz)|
|Working Frequency||470-490 MHz|
|Antenna Style||Quarter Wave Whip|
|SISO or MIMO||SISO|
|Directional or Omni||Omnidirectional|
|VSWR: < X: 1||2.0:1|
|OK for Outdoor Use||Yes|
|Ground Plane Required||Yes|
