QWB220: 220-225 MHz (1.25 meter band) Black Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.
QWB220
QWB220: 220-225 MHz (1.25 meter band) Black Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.

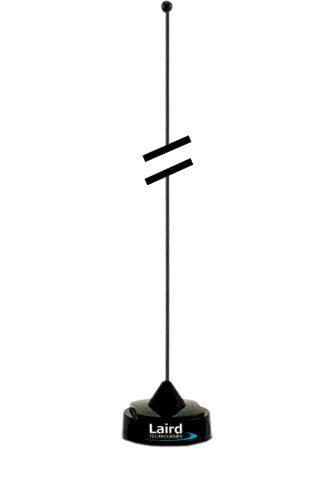

More InfoSpecifications ReviewsThe Laird/Antenex QWB220 is a(n) 12.5 inch long, stainless steel quarter wave omnidirectional whip antenna with black finish for operation in the 220-225 MHz frequency range, with NMO base. Metal ground plane is required.
*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
***This item is subject to an MOQ of 41 pcs***
More Information
The Laird / Antenex QWB220 is an 12.5 inch long, chrome, ¼ wave whip antenna with NMO base. This antenna requires a metal ground plane, is omnidirectional, offers Unity/2.15 dBi gain and accepts up to 200 watts max power and operates in the 220-225 MHz MHz range.
Laird Technology’s family of Quarter Wave Whip antennas all built with stainless steel materials and feature gold plated contacts for corrosion resistance and best power transfer.
FEATURES:
- Frequency Range: 220-225 MHz MHz
- Gain: Unity: Unity/2.15 dBi
- Length: 12.5 inches
- FIVE YEAR FACTORY WARRANTY
Specifications
SKU | QWB220 |
---|---|
Manufacturer Part Number | QWB220 |
Manufacturer | Laird |
Antenna Category | VHF-2 (220-380 MHz) |
Working Frequency | 220-225 MHz |
Gain | Unity/2.15 dBi |
Antenna Style | Quarter Wave Whip |
Polarity | Vertical |
Bands | Single |
SISO or MIMO | SISO |
Directional or Omni | Omnidirectional |
Impedance | 50 Ohm |
VSWR: < X: 1 | 2.0:1 |
Height/Length (inches) | 12.5 |
Height/Length (mm) | 317.5 |
Material | Stainless Steel |
Color | Black |
Connector 1 | NMO |
OK for Outdoor Use | Yes |
Vehicular | Yes |
Ground Plane Required | Yes |
Product Condition | New |
