QWB152: 152-162 MHz Black Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.

  • $14.78
    Unit price per

QWB152-L


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $13.48
25 $12.50
100 $11.46
250 $10.42
500 $9.55
Lead time:  Ships in 4-6 Weeks

Shipping calculated at checkout.

QWB152: 152-162 MHz Black Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.

More InfoSpecifications Reviews

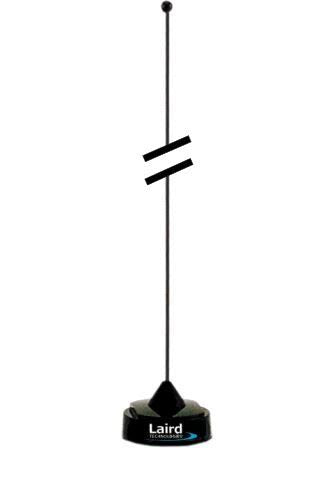

The Laird/Antenex QWB152 is a(n) 18 inch long, stainless steel quarter wave omnidirectional whip antenna with black finish for operation in the 152-162 MHz frequency range, with NMO base. Metal ground plane is required.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The Laird / Antenex QWB152 is an 18 inch long, chrome, ¼ wave whip antenna with NMO base.  This antenna requires a metal ground plane, is omnidirectional, offers Unity/2.15 dBi gain and accepts up to 200 watts max power and operates in the 152-162 MHz MHz range.

Laird Technology’s family of Quarter Wave Whip antennas all built with stainless steel materials and feature gold plated contacts for corrosion resistance and best power transfer.

FEATURES:

  • Frequency Range: 152-162 MHz MHz
  • Gain: Unity: Unity/2.15 dBi
  • Length: 18 inches
  • FIVE YEAR FACTORY WARRANTY

Specifications

SKU QWB152
Manufacturer Part Number QWB152-L
Manufacturer Laird
Antenna Category VHF (132-220 MHz)
Working Frequency 152-162 MHz
Gain Unity/2.15 dBi
Antenna Style Quarter Wave Whip
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 2.0:1
Height/Length (inches) 18
Height/Length (mm) 457.2
Material Stainless Steel
Color Black
Connector 1 NMO
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
