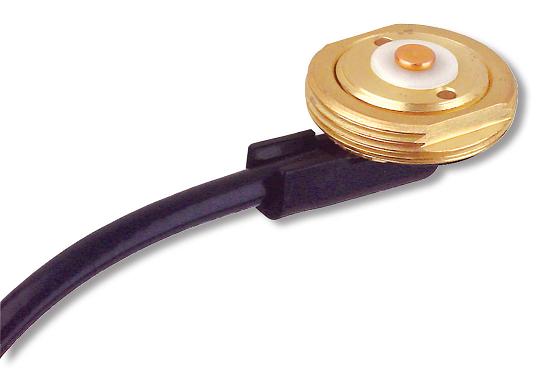

MB8UM: 3/4 Thru-Hole NMO Mount with 17 Ft. RG-58/U Cable. Mini UHF Connector Included but NOT Installed.
MB8UM
MB8UM: 3/4 Thru-Hole NMO Mount with 17 Ft. RG-58/U Cable. Mini UHF Connector Included but NOT Installed.
More InfoDocumentsSpecifications ReviewsThis TE Connectivity-Antenex 3/4 Thru-Hole NMO Mount is optimized for vehicular roof mounting of an NMO type antenna. Typically used with VHF or UHF antennas, the MB8UM includes a 17 Ft. RG-58/U Cable & Mini UHF Connector, Included but NOT Installed. If you want the MB8UM with the Mini UHF connector INSTALLED, use part # MB8UMI.
If this is not the NMO Mount you are looking for, please click here to find all NMO mounts we carry or email customerservice@arcadianinc.com to get to one of our customer service team member.
More Information
High-Quality NMO cable kits and NMO magnetic mounts were the flagship product of the original Antenex Corporation (now TE Connectivity.) The company's passion and dedication to designing and manufacturing high-performance coaxial cables like the MB8UM for Thru-Hole vehicular mounting of NMO antennas continues to drive the company's success today.
FEATURES
- 3/4 inch Brass Thru-Hole NMO Mount
- 17 Ft. RG-58/U solid center core Cable

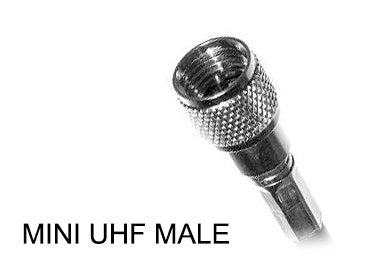

- Mini UHF Connector Included but NOT Installed*
- Originally designed by Antenex
- 5 Year Factory Warranty
*If you want the MB8UM with the Mini UHF connector INSTALLED, use part # MB8UMI.
| Cable Type | Attenuation (dB/100 ft) | ||
| 150 MHZ | 450 MHZ | 900 MHZ | |
| RG-58/U | 5.40 | 10.20 | 16.10 |
| RG-58A/U | 6.20 | 12.50 | 20.00 |
| RG8X | 3.60 | 6.80 | 10.70 |
| Solid Teflon Cable | 4.80 | 9.00 | 13.50 |
Documents
Specifications
| SKU | MB8UM |
|---|---|
| Manufacturer Part Number | MB8UM |
| Manufacturer | TE Connectivity |
| NMO Mount Type | Thru Hole NMO mount |
| Mount Style | 3/4 Thru-Hole NMO Mount |
| Connector 1 | Mini UHF Male/ Mini-PL259/ MPL |
| Cable Type | RG-58/U |
| Cable Length (inches) | 204 |
| Cable Length (mm) | 62179.2 |
| Weight (lbs) | 0.5 |
| Weight (grams) | 227.27 |
| Color | Black |
| Connector Type | Connector - Rear |
| Vehicular | Yes |
| OK for Outdoor Use | Yes |
| Product Condition | New |
