ETRAB8903: 890-960 MHz Phantom Elite Antenna with NMO - Mobile Mount Metallic Ground Plane is Required

  • $30.18
    Unit price per

ETRAB8903


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
25 $29.70
100 $27.84
250 $26.20
500 $24.41
Factory lead time:  Ships in 6-8 Weeks

ETRAB8903: 890-960 MHz Phantom Elite Antenna with NMO - Mobile Mount Metallic Ground Plane is Required

More InfoDocumentsSpecifications Reviews

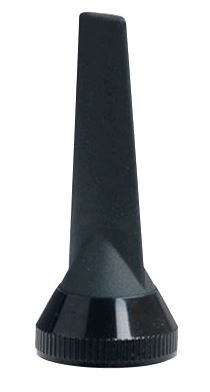

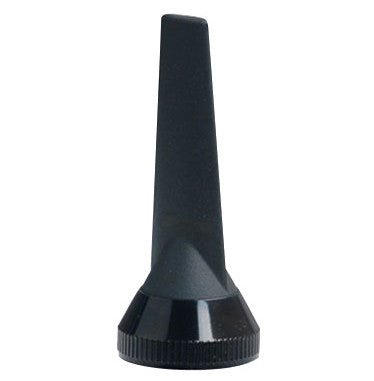

The Laird/Antenex ETRAB8903 is a 2.7 inch high Black low profile Phantom Elite antenna with NMO - Mobile Mount base. This antenna requires a metal ground plane, is omnidirectional, offers 5.15 dBi gain and accepts up to 150 watts max power input and operates in 890-960 MHz frequency range.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The Laird / Antenex ETRAB8903 is an 2.7 inch high, Black, low profile Phantom Elite antenna with NMO - Mobile Mount base.  This antenna does require a metal ground plane, is omnidirectional, offers 5.15 dBi dBi gain and accepts up to 150 watts max input power and operates in the 890-960 MHz range.

Laird Technology’s family of Phantom Elite antennas are made of injection molded ABS material, and feature silver soldered joints for best performance.

FEATURES:

  • Frequency Range: 890-960 MHz
  • Gain: 5.15 dBi
  • Polarization: Dual – Horizontal & Vertical
  • NMO - Mobile Mount
  • FIVE YEAR FACTORY WARRANTY

Documents


Specifications

SKU ETRAB8903
Manufacturer Part Number ETRAB8903
Manufacturer Laird
Product Condition New
Antenna Style Phantom Elite
Antenna Style Phantom Elite
Antenna Category 900 MHz
Polarity Dual Polarity
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 890-960 MHz
Gain 1 5.15 dBi
Frequency 2 1710-2700 Mhz
Gain 2 5.5 Peak dBi
Impedance 50 Ohm
Max Input Power (W) 100 Watts
VSWR: < X: 1 2.0:1
Height/Length (inches) 2.7
Height/Length (mm) 68.58
Thickness/Diameter (inches) 1.44 inches
Thickness/Diameter (mm) 36.5 mm
Weight (lbs) 0.5
Material High Heat ABS
Operating Temp (celsius) (-40 to 85)
Mount Style NMO - Mobile Mount
Color Black
Connector Type Connector - Bottom
Connector 1 NMO
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
