ETRAB4500N: 450-470 MHz Phantom Elite Antenna with NMO - Mobile Mount Metallic Ground Plane IS NOT Required

  • $62.38
    Unit price per

ETRAB4500N


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $58.14
25 $54.46
100 $50.46
250 $47.64
500 $45.13
Lead time:  Ships in 8-10 Weeks

Shipping calculated at checkout.

ETRAB4500N: 450-470 MHz Phantom Elite Antenna with NMO - Mobile Mount Metallic Ground Plane IS NOT Required

More InfoSpecifications Reviews

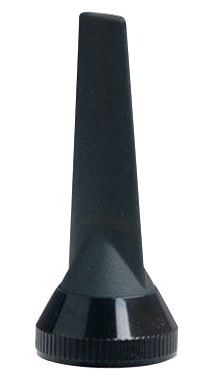

The Laird/Antenex ETRAB4500N is a 3.4 inch high Black low profile Phantom Elite antenna with NMO - Mobile Mount base. This antenna does not require a metal ground plane, is omnidirectional, offers 5.15 dBi gain and accepts up to 150 watts max power input and operates in 450-470 MHz frequency range.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.

***This part is subject to an MOQ of 10 pcs***



More Information

The Laird / Antenex ETRAB4500N is an 3.4 inch high, Black, low profile Phantom Elite antenna with NMO - Mobile Mount base.  This antenna does not require a metal ground plane, is omnidirectional, offers 5.15 dBi dBi gain and accepts up to 150 watts max input power and operates in the 450-470 MHz range.

Laird Technology’s family of Phantom Elite antennas are made of injection molded ABS material, and feature silver soldered joints for best performance.

FEATURES:

  • Frequency Range: 450-470 MHz
  • Gain: 5.15 dBi
  • Polarization: Dual – Horizontal & Vertical
  • NMO - Mobile Mount
  • FIVE YEAR FACTORY WARRANTY

Specifications

SKU ETRAB4500N
Manufacturer Part Number ETRAB4500N
Manufacturer Laird
Antenna Category UHF (380-600 MHz)
Working Frequency 450-470 MHz
Gain 5.15 dBi
Antenna Style Phantom Elite
Polarity Dual Polarity
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 2.0:1
Height/Length (inches) 3.4
Height/Length (mm) 86.36
Operating Temp (celsius) (-40 to 85)
Mount Style NMO - Mobile Mount
Color Black
Connector 1 NMO
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
