ETRAB1550: 155-160 MHz Phantom Elite Antenna with NMO - Mobile Mount Metallic Ground Plane is Required

  • $131.78
    Unit price per

ETRAB1550


46 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $127.90
25 $122.50
100 $116.75
250 $115.19
500 $114.45
Lead time for qty above 46:  Ships in 8-10 Weeks

Shipping calculated at checkout.

ETRAB1550: 155-160 MHz Phantom Elite Antenna with NMO - Mobile Mount Metallic Ground Plane is Required

More InfoDocumentsSpecifications Reviews

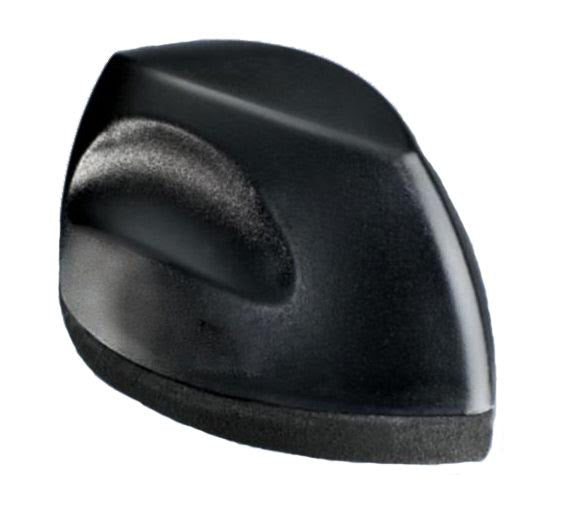

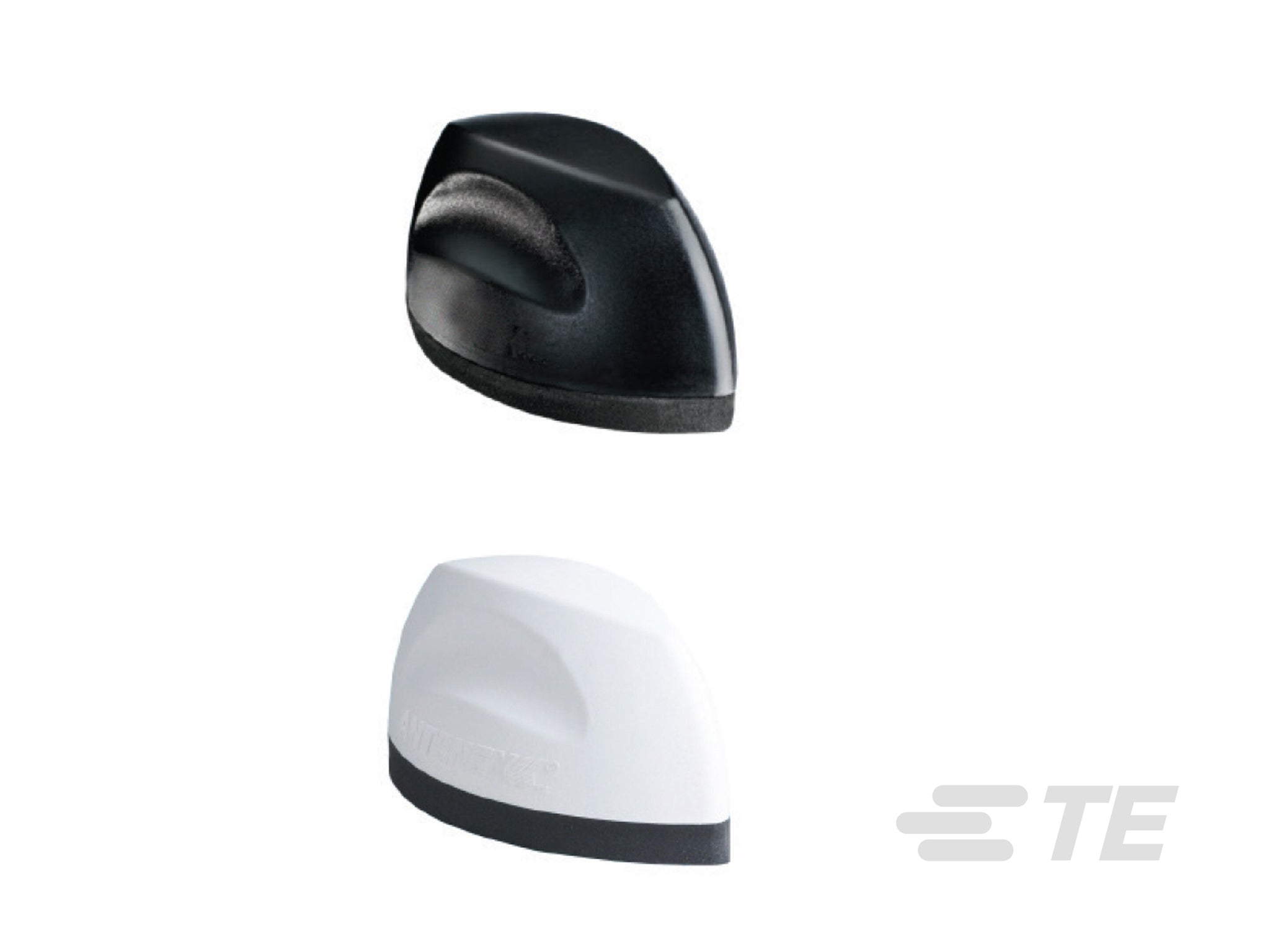

The Laird/Antenex ETRAB1550 is a 2.38 inch high Black low profile Phantom Elite antenna with NMO - Mobile Mount base. This antenna requires a metal ground plane, is omnidirectional, offers 2.15 dBi gain and accepts up to 60 watts max power input and operates in 155-160 MHz frequency range.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The Laird / Antenex ETRAB1550 is an 2.38 inch high, Black, low profile Phantom Elite antenna with NMO - Mobile Mount base.  This antenna does require a metal ground plane, is omnidirectional, offers 2.15 dBi dBi gain and accepts up to 60 watts max input power and operates in the 155-160 MHz range.

Laird Technology’s family of Phantom Elite antennas are made of injection molded ABS material, and feature silver soldered joints for best performance.

FEATURES:

  • Frequency Range: 155-160 MHz
  • Gain: 2.15 dBi
  • Polarization: Dual – Horizontal & Vertical
  • NMO - Mobile Mount
  • FIVE YEAR FACTORY WARRANTY

Documents


Specifications

SKU ETRAB1550
Manufacturer Part Number ETRAB1550
Manufacturer Laird
Antenna Category VHF (132-220 MHz)
Working Frequency 155-160 MHz
Gain 2.15 dBi
Antenna Style Low Profile Antenna
Polarity Dual Polarity
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 2.0:1
Height/Length (inches) 2.38
Height/Length (mm) 60.452
Operating Temp (celsius) (-40 to 85)
Mount Style NMO - Mobile Mount
Color Black
Connector 1 NMO
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
