BB132R: 132-525 MHz Mobile Base Coil NMO Mount Antenna- Metalic Ground Plane Required

  • $76.15
    Unit price per


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $70.97
25 $66.49
100 $61.58
250 $58.17
500 $55.09
Lead time:  Ships in 6-8 Weeks

Shipping calculated at checkout.

BB132R: 132-525 MHz Mobile Base Coil NMO Mount Antenna- Metalic Ground Plane Required

More InfoDocumentsSpecifications Reviews

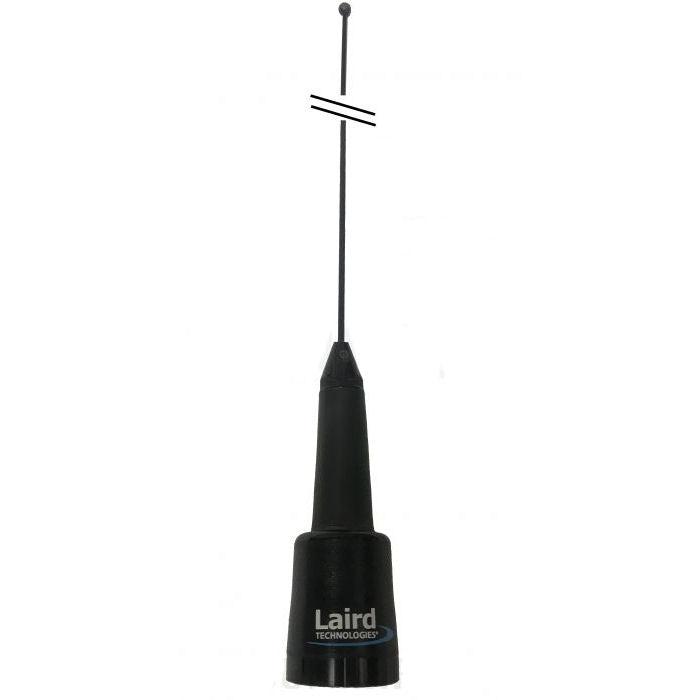

The Laird / Antenex BB132R is a 21 inch long, Black base coil, omnidirectional whip antenna for operation in the 132-525 MHz VHF band, with NMO base. Metal ground plane required.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.

This Antennas has Black Elastomer Spring.

***This item is subject to an MOQ of 9 pcs***

More Information

The Laird / Antenex BB132R is a 21 inch long, Black, base loaded mobile VHF whip antenna with NMO base and Rubber Boot. This antenna does require a metal ground plane. It is omnidirectional and offers Unity gain and accepts up to 100-200 watts max power and operates in the 132-525 MHz range.

Laird Technology’s ongoing commitment to refinement in mechanical and electrical design has resulted in the most technically advanced mobile load coil antennas on the market. Exclusive features such as stainless steel whips, housings constructed with ABS material injected molded around a solid brass insert, and gold plated push pin contacts make Laird Technologies the obvious choice for quality and long lasting value for demanding mobile radio communications.


  • Frequency Range: 132-525 MHz
  • Gain: Unity
  • Length: 21 inches
  • 100% tested on a network analyzer



Manufacturer Part Number BB132R
Manufacturer Laird
Antenna Category VHF (132-220 MHz)
Working Frequency 132-525 MHz
Gain Unity
Antenna Style Base Coil Antennas
Polarity Vertical
Bands Single
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 2.0:1
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 110
Spring Loaded No
Height/Length (inches) 21
Height/Length (mm) 533.4
Thickness/Diameter (inches) 1.375
Thickness/Diameter (mm) 34.93
Operating Temp (celsius) (-45 to 85)
Color Black
Connector Type Connector - Bottom
Connector 1 NMO
Includes Rubber Boot
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
